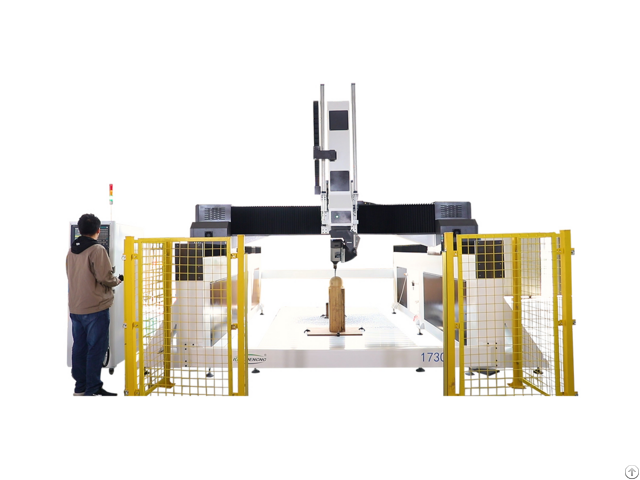

Heavy Duty Good Quality 5 Axis Cnc Router Head - China

Do you have an older 5 axis Motionmaster CNC router? A CNC machine that is not cutting accurately enough for your application? Instead of replacing your machinery, upgrading the 5 axis CNC head may be a desirable solution.

5th axis spindle head retrofits are the best way to upgrade a Motionmaster.

igoldencnc Our 5 axis CNC router head retrofit solution makes a difference in the overall accuracy and repeatability of your 5 axis Motionmaster CNC router.

The custom 5th axis head retrofits replace the standard gear train and motor mount as well as the yoke.

This allows the optional conversion to an automatic tool changing spindle.

The spindle head retrofit consists of a Nabtesco gear mounted to a precision machined steel weldment.

The gear has a backlash of <1 arc min.

igoldencnc’s 5-axis CNC routers for sale are designed to increase precision, speed, and versatility in your production process.

Manufactured with state-of-the-art components and innovative technology, these 5-axis CNC routers are ideal for use in virtually any industrial production process.

Features of a 5 Axis CNC Router

A 5 axis CNC saw is the pinnacle of speed, precision and versatile cutting power.

These innovative machines are capable of moving in five axes, so they are capable of creating the most complex cuts and shapes.

A miter saw blade allows up to a 90-degree tilt.

An extra-large cutting table can easily process a full slab of quartz, granite or other stone materials.

A covering of rubber pads enables you to process materials without any surface scratches or excessive friction.

Select a CNC saw from BACA Systems for a specialized stone manufacturing machine.

A one-inch water line cools the blade as it cuts to prevent excess heat.

It also allows faster cuts as the blade speeds through your stone or other countertop material.

Product Parameter

Description Parameters

Stroke 1720*3040*750mm

System Syntec control System

Countertop Aluminum profile countertop

Rail Taiwan HINWIN

Spindle 14KW SCM five-axis spindle + swing head

Tool magazine 8 disc change tools

Drive motor Yaskawa, Japan

Inverter Delta

Reducer SHIMPO reducer Specification Details of 5 Axis CNC Wood Router

• We adopt Italy H-Style 5-axis motion head with OMLAT 15kw auto tool changing water cooling spindle for this CNC Router.

X/Y/Z/A/C (5 axis) allows cutting on any of the five sides of an object.

• The machine comes with a carousel-style auto tool changer, which can get ten different cutters accommodated.

With it, the equipment can complete the job that requires multiple-tool machining in one working cycle.

• The working platform is a table-moving style with vacuum provision for vacuum chucking of parts onto fixture.

(Prefer a gantry-moving design? Please check this heavy-duty 5 axis cnc router machine)

• Closed-loop SYNTEC AC servo motors power all five axes; Y-axis is a dual-drive design, one for each side of the gantry.

It has excellent characteristics such as quiet operation, fast acceleration and deceleration, and superior positioning accuracy.

• Advanced technology bus-control SYNTEC (from Taiwan) is the CNC system, which has the possibility to operate in the manual, automatic, and interactive mode of operation.

Control program input and output from the USB communication port on the system panel.
