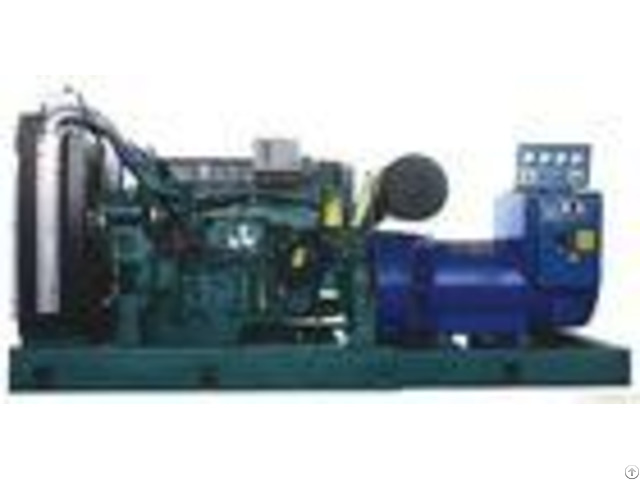

50hz 60hz Volvo Engine Generator - China

# # Genset Model: JP-V500 # Frequency: 50 Hz / 60 Hz # Power Factor: 0.8(lagging) # Cycle: 4 Stroke # Cooling System: Water-cooled # Diesel Engine Mode: TWD1643GE # Rotating Speed: 1500/18000RPM # Alternator Model: TFW-series # Type : waste gas turbine boost, direct spurting type # Engine Make & Model: Perkins 1104C-44TAG2 # Base Frame Type: Heavy Duty Fabricated Steel # Standby Power: 880KW / 1100KVA Technical parameters of diesel generator sets: - - - - Technical data | Genset Model | JP-V500 | Rated Voltage | 400/230V | Frequency | 50/60Hz | Power Factor | 0.8(lagging) | The regulating rate of steady voltage | 0.5% | The regulating rate of instantaneous voltage | -15%/ +20% | The time of steady voltage | 1.5sec | The waving rate of voltage | 1.0% | The regulating rate of steady frequency | 3% | The regulating rate of instantaneous frequency | 10% | The time of steady frequency | 3sec | Dimension (LWH) (mm) | 3350*1350*1950 | Genset weight (kg) | 3600 | Diesel Engine | Brand | Volvo | Mode | TWD1643GE | Number of Cylinde | 6 | Rotating Speed | 1500/18000RPM | Cycle | Four stroke | Type | waste gas turbine boost, direct spurting type | BoreStroke(mm) | 144*165 | Displacement(L) | 16.12 | Lubricating Capacity(L) | 48 | Speed Governor | Electrical | Cooling System | Water-cooled | Speed Stability (%) | 5% | Fuel Consumption at 100% Load | 199 g/kw.

h | Starting Method | DC24V Electrical starting | Alternator | Brand | Qinghui | Model | TFW-series | Number of Phase | 3 | Connecting Type | Three Phase and Four Lines | Number of Bearing | 1 | Grading Protection | IP22 | Altitude | 1000m | Exciter Type | Brushless (AVR automatic voltage regulating) | Insulation Class | H degree | The components of the genset | (1) Volvo Diesel Engine; (2)Qianghui Alternator; (3) Control Panel | Control Panel | The control panel is Quadruplication protection control panel, with the display of frequency table/water temperature/schedule/batt ery voltmeter.

The genset with low oil pressure, high water temperature, over speed emergency, stop and other pre-protection.

| - - - -
