Ac Powered Low Cost Insertion Electro Magnetic Flowmeter For Large Pipe Waste Water - China

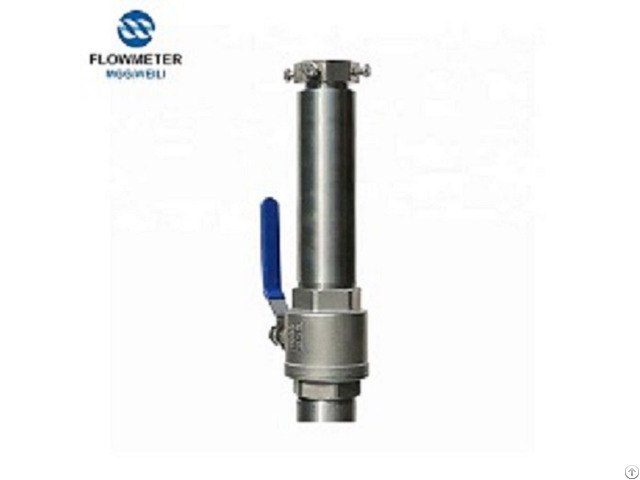

AC powered low cost insertion electro magnetic flowmeter for large pipe waste water

Plug In Accurate Flowmeter China, Electromagnetic Model Insertion Flow Meter

Quick Details： Place of Origin Henan, China (Mainland) Brand Name WEILI Model Number MGG

Product Name Plug-in flowmeter Medium Etc Accuracy 1.50%

Power supply 220VAC/ 24VDC Output 4-20mA /RS485 Application Widely flowmeter

Connection Flanged Protection IP65, IP68 is optional Material PVC, ABS, Polupropylene MGG Insertion type：

Magne W3000 PLUS Insertion type Electromagnetic flowmeter being based on Faraday's law of electromagnetic induction with advanced international technics is a kind of flowmeter of high intellectual and reliability.

It has been widely used in the area of big-cable flowmeters with its high cost-effective.

Available Sizes Four probe lengths to suit line sizes from 6"…120"

Accuracy ± 1.5 % of measured value plus ± 0.5 % ofmaximum range

Maximum Flow Velocity 5 m/s / 16.4 ft/s

Maximum Pressure 16 Bar / 232 psi

Maximum Temperature Compact Unit 80°C / 176°

Remote Unit 100°C / 212°F

Repeatability ± 1.5 % of rate

Process Connections ANSI Flange (B16.5) Electrode and Probe Body Materials 316L Stainless Steel

Hastelloy-C22

Hastelloy-B10

Removable Probe Hot Tap Retractor Option Available

Housing Protection Class IP65

IP67 (Compact versions only)

IP68 (Remote Versions Only)

Remote Transmitter Pipe Mount or Wall Mount

Available Power Supplies 85…265VAC

16…36VDC

Transmitter Configuration Options Front Panel Keypad

Hand Held Infrared Programmer

Output Signals 1 x Active Current Output

1 x Passive Current Output

1 x Frequency / Pulse Output

Status Outputs 2 x Contact / Status Outputs for Upper and Lower Flow Limit

Digital Communication RS485 Modbus, HART Main Features：

1) The wide range of the nominal bore is suitable for all the pipe size between DN300 and DN 3000.

2)With simple structure, the flow meter is of high reliability without lining in the measuring pipe .

3)The integral grounded electrode guarantees the grouding well

4)The sensor with advanced processing technology and liquid airproof is of long natural life and of nice resistance to shaking leakage .

It guarantees the instrument good precision and stability .
