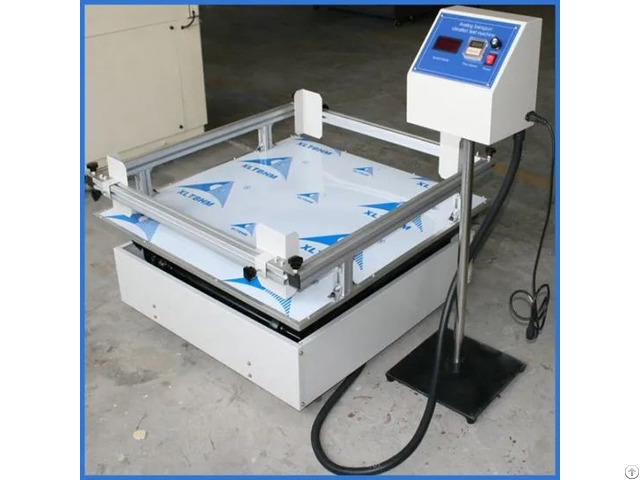

Analog Transport Shipping Package Vibration Test Machine - China

Analog transport shipping package vibration test machine Introduction&Applicat ion:

Analog transport package vibration test chamber, Electromagnetic type vibration tester, adopt " double

magnetic circuit structure", " self generation skeleton moving coil", "air suspension bearing", " linear

bearing and roller guide", " ear shaft vibration isolation" and other modern advanced technology and

special technology, which can complete respectively three shaft sine vibration test and broadband

random vibration test, complete the classic (half sine, trapezoid and after peak saw) pulse and shock

response spectrum test.

Feature:

1 The careful design of the moving coil skeleton, has higher first-order axial resonant frequency.

2 Light armature, high stiffness, 4000 Hz frequency.

3 Computer connecting line control, immediately store materials.

4 Display controlling chart.

5 Low resistance and high performance design, high efficiency, low cost.

6 High reliability, low fault.

6 Best after sales service: One year free parts maintenance.

7 Customization is available & welcomed.

Technical parameters Specification

Model YEV-11 YEV-12 YEV-13 YEV-14 YEV-15 YEV-16

Vibrator Model GV100/25 GV200/25 GV300/25 GV300/40 GV500/25 GV600/25

Frequency Range(Hz) 2-4000 2-4000 2-4000 2-2500 2-3000 2-2500

Max.

Exciting Force(kg.

f) 100 200 300 300 500 600

Max.

Displacement(MMp-p) 25 25 25 40 25 25

Max.

Acceleration(G) 40 80 80 33 83 100

Max.

Speed(cm/s) 150 150 160 120 150 150

Payload(kg) 65 65 110 120 190 190

Moving Coil Weight (kg) 2.5 2.5 4 9 6 6

Moving Coil Circular(mm) 140 140 150 225 202 202

Vibrator Weight(kg) 220 250 240 760 690 700

Dimensions(LWH)mm 675×560×660 675×560×660 675×560×660 675×560×660 800×600×710 800×600×710

Power Amplifier Model SA1K SA2K SA3K SA4K SA5K SA6K

Power Amplifier Weight(kg) 210 210 250 300 300 320

Cooling Method Force-Air Cooling

Power Amplifier Size(L×W×H)mm 720×545×1625 720×545×1625 720×545×1625 720×545×1625 720×545×1625 720×545×1625

Power Source[k.

w] AC 1Ψ 220V/50Hz;3Ψ 380V 50Hz

General Power(KVA) 5 6 6 9 17 18 Except Analog transport package vibration test machine, we can supply:

Precision Oven Tester, Triple Type Temp.

& Humi.

Chamber, Temp.

&Humi.

Control Host, Air Thermal

Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp.

Humi.

&Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test

equipment, Dust Tester, Steam Aging Tester, Tensile Tester, Drop Tester and so on.
