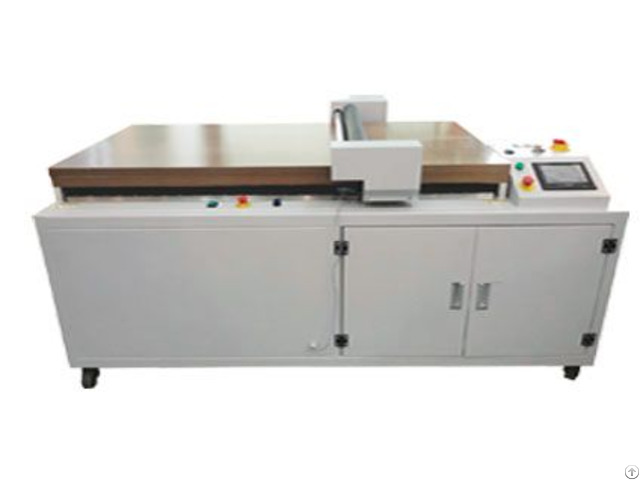

Auto Polaroid Laminating Machine For Phone Pad Lcd Screen - China

Polaroid Laminating Machine Equipment 1 - Application: This Laminating Machine is Use to Laminate kinds of LCD, Polarize and other surface .

2 - Parameter No.

Item Spec.

2.1 Panel &Glass 1)Suitable Size：7-85inch； 2)Suitable Thickness：≥1mm； 2.2 Polarize Suitable size：7-85inch 2.3 Laminate Film Type 1)Polarize Laminate； 2)PCT Laminate film； 3)Other Product Laminate Film； 3 - Equipment Characteristic No.

Item Spec.

3.1 Operate Process Put the Panel on the work platform manually, Locating with the polarize;put the protect film on automatic receiving shaft； Press the start button, press head go down and move to start laminating; Press the return materials button, start return materials automaticlly.

3.2 Capacity Depends on the panel zise 3.3 Failure Rate ≤0.01`% 3.4 Remodel Conventional Template 4 - Equipment and Unit Parameter No.

Item Spe.

4.1 Power AC220V 50-60Hz 4.2 Compressed Air 1)windpipe color：Black； 2)windpipe Diameter：￠8mm ； 3)Air Consumption；≈80L/min� �� 4)Work Air Pressure： 0.4-0.7Mpa dry air ； 4.3 Vacuum Vacuum Control Mode: Vacuum Pump+Vacuum generator; 2) Vacuum Windpipe Color: Black 4.4 Color Frame surface roasts the paint processing, 4.5 G.W. about 350 KG 4.6 Size(80inch) L 2200 × W 1170 × H 900 (mm) 4.7 Laminate Press Head Unit 1)Press Head Materials：Anti-static roller； 2)Press principle: use lever principle; 3)Laminating and Removing Mode: Laminae file, remove film and protect film at the same time; 4)Press Head output range：0-36kg／㎝²(ca n adjust)； 5)Roller Hardness：30HA-70HA(OEM) 6)Roller Color：Black or white 7)Track Mode：pressure roller； 8)Laminating Precision: X: ±0.2mm Y: ±0.2mm 4.8 Work Platform Unit 1)Platform Materials：imported High Strength bakelite plate； 2)Platform Thickness：30mm； 3) Anti scratch processing：TEFLON surface finished 4) Vacuum distribution: According to the demands; 4.9 Operate Platform Unit 1)Touch screen Interface Language: Chinese & English(Optional)； Parameter Set Screen：can set and display the parameter on the Touch Panel Directly.

； 2)Auto Mode Picture 3)Manual Mode Picture； 4)I/O Monitor Picture； 5)Touch Screen combination lock(Optional)； 4.10 Control Unit 1)Touch Screen：7inch Full Color Screen, human-computer interface； 2)Resolution Rate：1024×768； 3)Control System(LG-LS) programmable processor； 4)Pressure Meter：KITA, ；Digital Display mode Press Adjust：CKD, Precision Pressure Valve 5)Pressure Precision：±0.5% in full； 6)Sensitivity：0.2% in full； 8)Pressure Unit：Kg/N/Mpa/Kpa in Exchange

Company Contact:

• Posted By: TOPVIEW ELECTRONICS CO.,LTD

• Phone: 0755455889

• Address: fengtang road, Shenzen , Guangdong , China

• Email:

• Business Description: TopView Co., LTD is professional in research and development, production, marketing, promotion of service equipment, LCD touch screen production Equipment and various automation equipment of high-tech.

  With the research concept of "high efficiency"Topview has made achievements, opened several branches for different markets and estabilish long term business relationship all over the world.

  We provide Constant temperature hot pressing machine, Pulse hot-pressing machine, ACF Bonding Machine, Automatic Bubble Remove machine, Polarizer Delaminating Machine, Polarizer Laminating Machine, COG Equipment, OCA Laminating Machine, CG Laminating Machine, Photo Electronic Tablet Special Equipment, which is widely used in modern FPD Producion process.

  At the same time, We also help customers to buy some Electronics Components which will be used during they repairing works, such as OCA, Screen Glass, COF, ACF, BackLight LCD, etc, iphone accessories.



  Main competive advantages:

  Good After-Service, provide local service include technical guidance, maintain and replacement in United States, Mexico and Brazil.

  Strict QC one by one before packing ensure high Quality and stable performance.

  First source manufacturer products, Competive price offer.

  Complete supplier chain, iphone accessories are also available, cooperated with big enterprise for many years.
