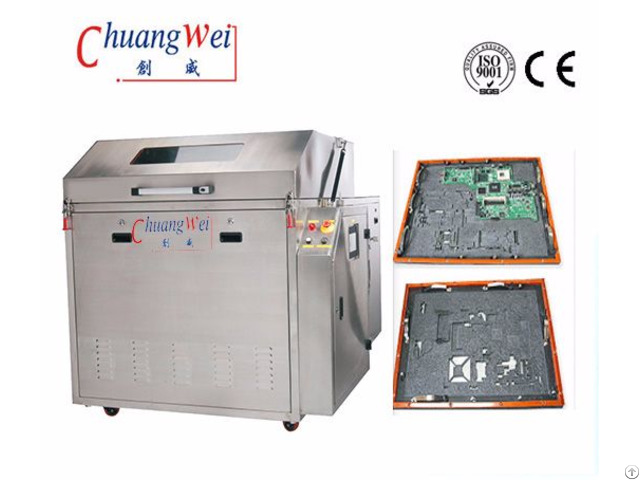

Automatic Fixture Cleaning Machine - China

Advantages:

1 - Touch screen display, one-button operation, one person cleaning, saving labor

2 - Water-based cleaning fluid, environmental protection

3 - The cleaning solution is recycled to save the solution

4 - Batch cleaning, cleaning fast and efficient

5 - Equipped with a wind knife, can be completely dry

6 - Up and down, around the full range of cleaning, cleaning thoroughly, high cleanliness

7 - Spray cleaning, governance with intact.

Specifications:

•Cleaning basket size ：1000mm Diameter round basket × 200mm(H), Special size need to be customized

•Cleaning fluid capacity ：80L( maximum )

•Rinse fluid capacity ：80L( maximum )

•Cleaning method ： Spray rotary cleaning and rinsing

•Dry way ： Heated air knife dry

•Recommended cleaning time ：5-20 mines

•Recommended rinse time ：2-3 mines

•Recommended drying time ：5-20 mines

•Cleaning filter ： Using 3-level filtration

•Class 1 filter ：2mm( Filter impurities )

•Class 2, 3 filters ：100um/20um( Filter flux, rosin and so on )

•Blower ：3.7KW加Heated to 80°

•Electric pump ：2.2KW/1.1KW

•Diaphragm pump ： 1 inch diaphragm pump (pumping, drainage)

•Air supply ：0.5Mpa~ 0.7Mpa, 600-800L/min

•power supply ：AC380V, 3Phase, 22KW

•weight ：about 500KG

•dimension ：1380(L) ×2100mm(W) ×1400mm(H)
