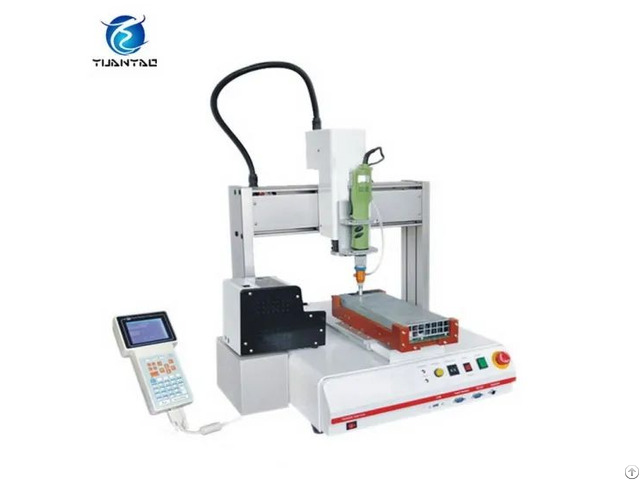

Ce Certification Desktop Type Automatic Glue Plastisol Liquid Dispensing Machine - China

CE Certification Desktop Type Automatic Glue Plastisol Liquid Dispensing Machine Application: It is used to Chevrons, fridge magnets, key chains, power supply, cell phone, energy saving light, LED, DVD, DC, Switch, Connector, relay and other industries needing fluid glue solder.

Package and delivery: Package: Wooden cases, suitable for a long distance shipment.

Delivery: In 15-20 working days after order comfirmation Feature: 1 - English handhold control box, easy use.

2 - Dispense points, lines, surface, circles, arc, irregular curves, three axis controllable.

3 - The software has array, horizontal move and rotate operation function.

4 - Can set the glue amount, speed and time etc.

Stable glue flow and no leaking.

5 - Four barrels work at the same time to improve efficiency.

6 - Easy operation

7 - Four barrels work at the same time

8 - Excellent performance

9 - Resonable price Except Automatic Dispensing Robots, Our factory also can supply: Precision Oven Tester, Triple Type Temp.

& Humidity Chamber, Temp.

& Humidity Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp.

Humidity &Vibration Combined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.

Specification: Model PY-220D PY-440D

Work area(X*Y*Z) 200*200*50mm 400*400*100mm

Max.

speed 500mm/sec

Resolution 0.02mm

Repeatability ±0.02mm

Operation interface LCD touch panel/Handhold control box

Drive mode Micro stepping motor/belt

Power AC220V 50-60HZ 0.8KW

Size 380*370*500mm 580*600*600mm

Net weight About 20KG About 40KG

Operation environment Humidity: 20-90% RH, Temperature: 0-40°C If you are interested in the items, please contact us soon.
