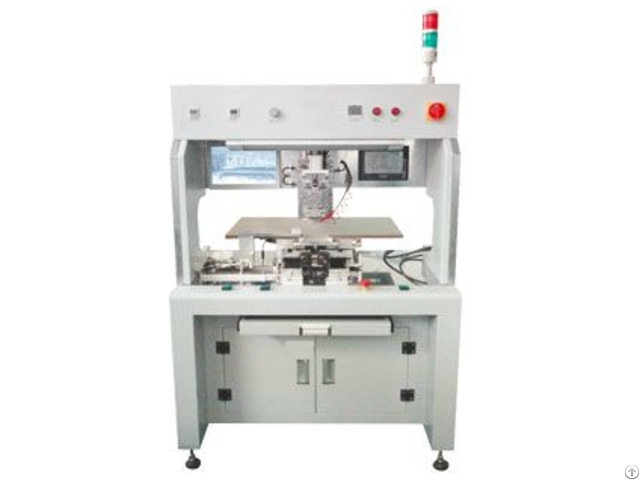

Cog Bonding Machine - China

1 - The definition of COG bonding machine ：

COG bonding equipment (pre-press) referred to as “bonding machine, ” “hot-press”, COG bonding equipment is to determine the IC chip on top of LCD glass finishing and binding equipment, machine controlled by a PLC + HMI composition core products in the completion of the bits and transmitted by the platform after preloading pressure to bind the crimp.

Using ACF (Anisotropic conductive adhesive) by pressing the IC bonding directly to the LCD screen.

After bonding the entire module is also through FPC (flexible printed circuit board) metal pin and PCB board connector or together.

LCD screen, ACF, the driver IC are the three key components of COG.

2 - About the application field of COG bonding machine TVG97-A1: COG bonding equipment (preload) is widely used in a variety of LCD display (LCD), modules (LCM) and large-sized display panel production, assembly, maintenance, production enterprises; such as: mobile phones, laptops, LCD monitors, tablet PCs, LCD / LCM production, assembly, repair enterprises.

3 - About the working principle of COG bonding machine TVG97-A1：

The working principle of COG bonding equipment (preload) is make the attached IC , ACF’s LCD, LCM assembled and bound in the (LCM) module production, maintenance and production process .

using the head pressure, head temperature, bonding time, optical alignment system to make IC, LCD and LCM, ACF glue bound, so that it can conduct.

4 - Basic parameters of TVQ77-A1 Input Power: AC220V 50-60HZ Vacuum control: vacuum + vacuum generator Dimensions: L1000 * W1050 * H1475mm (excluding warning lights) Operating modes: 7-inch HMI Platform Work: Fixed Platform Material: high quality Bakelite Control system (LG-LS): a programmable processor Pressure gauge: KITA, the number of explicit Pressure regulator: Japan SMC, precision pressure regulating valve Pressure accuracy: ± 0.5% full in the degree Sensitivity: 0.2% full in the degree Pressure Unit: Kg / N / Mpa / Kpa swap counterpoint mode: CCD next counterpoint Platform Work: Fixed Platform Material: high quality Bakelite Heating: heating thermostat Thermocouple: K type Blade material: 440C Temperature range: RT-500 ℃

Company Contact:

• Posted By: TOPVIEW ELECTRONICS CO.,LTD

• Phone: 0755455889

• Address: fengtang road, Shenzen , Guangdong , China

• Email:

• Business Description: TopView Co., LTD is professional in research and development, production, marketing, promotion of service equipment, LCD touch screen production Equipment and various automation equipment of high-tech.

  With the research concept of "high efficiency"Topview has made achievements, opened several branches for different markets and estabilish long term business relationship all over the world.

  We provide Constant temperature hot pressing machine, Pulse hot-pressing machine, ACF Bonding Machine, Automatic Bubble Remove machine, Polarizer Delaminating Machine, Polarizer Laminating Machine, COG Equipment, OCA Laminating Machine, CG Laminating Machine, Photo Electronic Tablet Special Equipment, which is widely used in modern FPD Producion process.

  At the same time, We also help customers to buy some Electronics Components which will be used during they repairing works, such as OCA, Screen Glass, COF, ACF, BackLight LCD, etc, iphone accessories.
