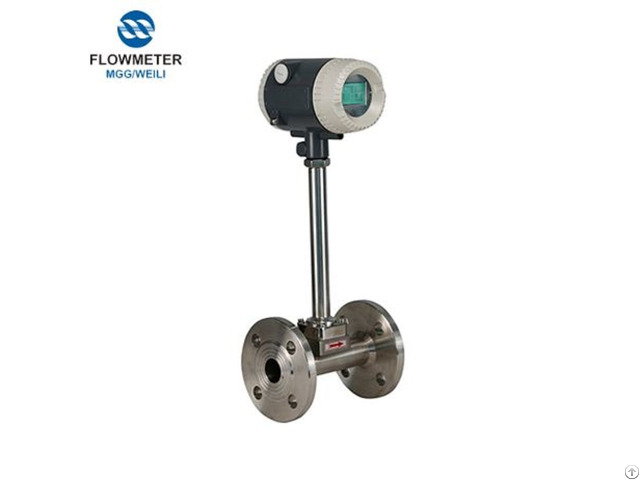

Digital Natural Gas Vortex Flowmeter - China

Digital natural Gas Vortex Flowmeter

Digital Vortex Flowmeter, Full Tube Stainless Steel Model Vortex Flow Meter

Quick Details：

Place of Origin Henan, China (Mainland) Brand Name WEILI Model Number MGG

Product Name Digital natural Gas Vortex Flowmeter Medium Etc flowmeter Accuracy 0.2% flowmeter

Power supply 220VAC/ 24VDC flowmeter Output 4-20mA /RS485 flowmeter Application Widely flowmeter

keyword natural Gas Vortex Flowmeter Type Integral flowmeter Material Stainless Steel flowmeter Product Description：

LUGB series of vortex flowmeter is based on the"Karman vortex" principle, the use of piezo electric crystal as a measuring element of the flow measurement instruments for a variety of gas, steam, liquid flow measurement .

LUGB series of vortex flowmeter specifications from DN15 to DN600, vortex flowmeter in accordance with the structural characteristics into full-tube vortex flowmeter and plug-in vortex flowmeter.

In accordance with the different output signals can be divided into pulse output mode sensor and the standard current output of the transmitter.

The instrument has the advantage of wide flow measurement range, high accuracy, simple structure, small pressure loss, no moving parts, etc.

It is applied to the measurement of instantaneous flow and total flow of fluid in a closed pipeline.

Characteristics：

Measurement is independent of fluid density, viscosity, humidity, temperature pressure and conductivity There are no obstacle parts in the measuring tube no pressure loss to the tube of which the straight part is of low requirement The sensor with grounded electrode gurantees the grounding wellThe sensor with advanced processing technology is of nice resistance to the negative pressure.

1 - Simple and firm, no moving parts, high reliability, long-term operation is very stable

2 - Zero drift, high precision

3 - Pressure loss is small, easy to maintain

4 - Measuring range, range up to: 1: 15

5 - Wide range of applications, gas, liquid, steam flow can be measured

6 - Wide operating temperature range: -40 ℃ to 350 ℃ high temperature

7 - Output pulse signal or current signal, easy to use with computer and other digital systems

Flow measurement range of full tube vortex flowmeter

diameter DN15 DN20 DN25 DN40 DN50 DN65 DN80 DN100 DN300

Air lower limit 5 6 8 18 30 50 70 100 1000

Air upper limit 30 50 60 180 300 500 700 1000 10000

Liquid lower limit 1 1.2 2 3 5 6 13 20 200

Liquid upper limit 6 8 15 30 50 60 130 200 2000
