Introduction

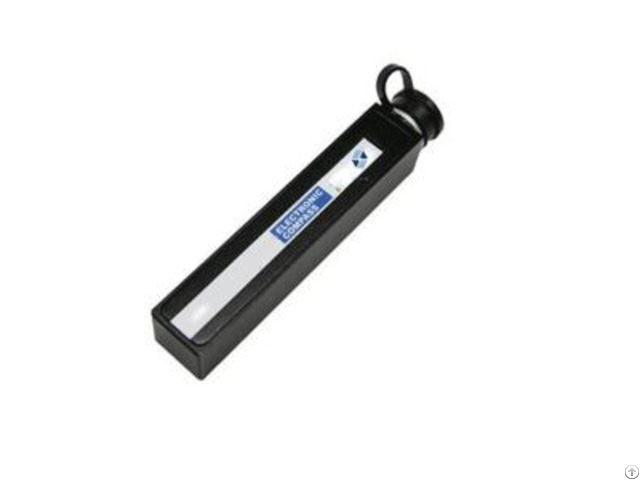

ER-EC-365A is a high precision full attitude 3D electronic compass that uses hard and soft iron calibration algorithms to provide high precision course information in 360° roll and +/-90° full dip range.

It has the characteristics of low power consumption, which is more suitable for power consumption and volume sensitive measurement systems.

The precise attitude of the product output carrier can be used in the system of full attitude rotation.

The product has hard magnetic, soft magnetic and tilt compensation, high-precision measurement of the compass output after calibration.

The patented three-axis fluxgate uses the CPU to calculate the heading in real time, and the three-axis accelerometer compensates for the heading angle, which can provide accurate heading and obtain data even in extremely harsh environments.

With the characteristics of small size and low power consumption, it is widely used in many fields such as petroleum logging, antenna pointing, vehicle navigation, attitude system and so on.

Features

Measurement range 0~360° full attitude

Heading accuracy 0.3~0.5°, resolution 0.1°

Output frequency 5~100HZ optional

Input voltage DC 5V

Wide temperature working -40~+85℃

With hard magnetic, soft magnetic and tilt compensation

The baud rate can be adjustable from 2400~115200

Working current: 40mA

IP67 protection level

Output RS232/RS485/TTL/MODBUS/CA N (optional)

Small volume (114*20*20mm) (customizable)
