Gt Fmplc 6 48 Station Heater Filling Machine - China

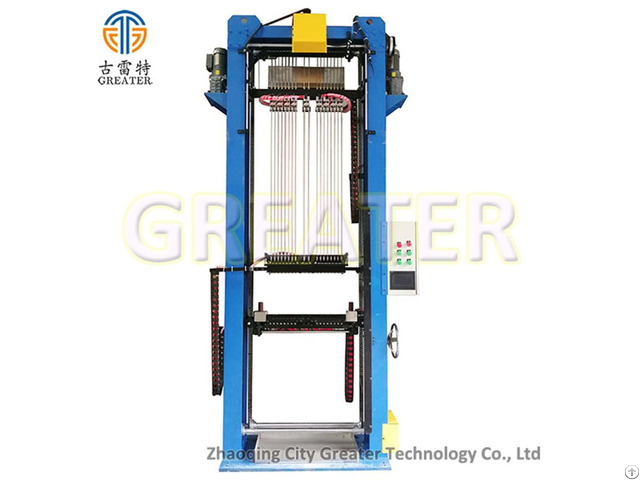

★Description GT-FM-PLC (triple guide tubes in 6-48 station) MGO powder filling machine, is improved on the basis of GT-FMPLC (double guide tubes in 6-48 station).

The main difference of double guide tubes and triple guide tubes filling machines is as below:

Three guide tubes filling machine can install different diameters on one machine.

If there are different diameters install on one machine, when fill the heater, user can choose the diameters need to fill, can fill one diameter, 2 diameters or more diameters together.

Other diameters if do not need to fill, will not add MGO powder.

It is a recommend filling machine for different diameters need to fill, or need to fill different diameters often, but not in bulk quantity.

★Main details

1 - Filling station: 6-48 stations according to order and diameter.

2 - Filling diameter: with 1-6 diameters on the machine according to order.

3 - Filling length: 300-max length according to order.

4 - Filling speed: 150-500mm / min adjustable.

5 - Power supply: AC380V, 50HZ.

7 - Size of machine: 1700*1000mm*(max length*2+2000)mm (L*W*H)

Company Contact:

• Posted By: Zhaoqing City Greater Technology Co., Ltd

• Phone: +867582225156

• Address: Duanzhou, Zhaoqing, Guangdong, China., Zhaoqing, Guangdong, China, Guangdong , China

• Email:

• Business Description: Zhaoqing City Greater Technology Co., Ltd focus on heater machines and heating element supplies.

  Greater offer tubular heater machinery, cartridge heater machinery, hot runner heater machinery, industrial heater machinery, heater supplies, heater raw materials.

  The machines and supplies include tube cutting machines, resistance wire winding machines,welding machines, plug with pin assembling machines, filling machines, feeding machines, reducing machines, trimming machine, anneal machines, bending machines, terminal pins, tube material for heating elements, ceramic beads, resistance wires, MGO rods, terminal pins, metal pcs, flanges etc.
