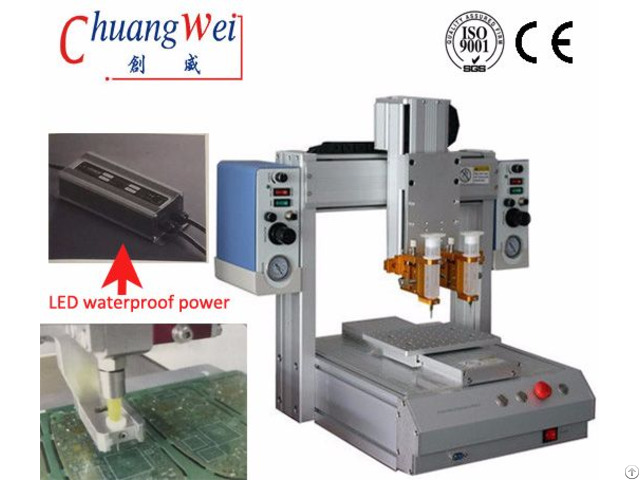

High Precision Automated Glue Dispenser For Pcba Assembly - China

Technical parameters: X/Y/Z Work Area: 300/300/100 MM

Work Load: Table/Tool: 10 kg.

/5 kg.

Max.

Speed: X&Y/Z 800/320 (mm/sec)

Repeat ability: +/- 0.02 mm/axis

Resolution: 0.001 mm/axis

Data Memory: 100 Programs/50, 000 points per

Drive System: Micro stepping motor

Motion Control: Point to point & continuous path

Teaching Method: Teach Pendant

I/O Signals: 8 inputs/8 outputs

External Interface: USB/RS232

Power Supply: 100-240 VAC, 320W Description:

The 300MM Stepper is our most popular industrial robot with a dispensing area of 11.81" x 11.81" (300MM X 300MM).

The 300MM Cartesian robot represents a substantial cost saving in comparison to similar desktop robots.

Its overall footprint has a depth of less than 26 inches (640MM), suitable for an industrial bench.

This line of robots is also available with a low cost vision system.

These bench top industrial robots are ideal for automating a current dispensing application.

With the various work areas offered almost every application can be fitted on one of the models in this series; 200, 300 or 400MM Robots.

A program consists of a series of instructions stored in the main unit, each instruction stored in a numbered memory address.

An address may record a point location, X, Y, and Z axis value, point type or instruction which sets a certain parameter, such as a dispensing time or line speed.

Installation:

The automatic dispenser machine can satisfy various requirements for dispensing, only need to choose different fixtures and math with dispensing systems.
