Hot Sale Smt Reflow Oven Welding Equipment Led Making Machine - China

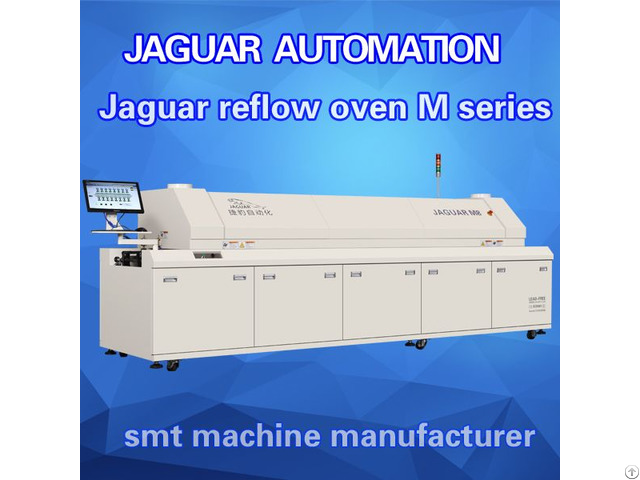

High Quality and Economic Reflow Soldering Machine Specification: Model JAGUAR M8 Heating System Number of heating zones UP 8/BOTTOM8 Length of heating zones 2900MM Heating mode hot air Cooling Mode Force air Cooling zones Up 1 bottom 1 Conveyor System Max.

Width of PCB 350mm Mesh belt width 400mm Transmission Direction L-R(or R-L) Transmission Net Height 880±20mm Transmission type Mesh and chain Range of rail width 0-300mm Conveyor speed 0-1500mm/min Auto/manual Lubrication standard Upper hood method Manual(option: auto) Fixed rail side Front rail fixed(option: rear rail fixed) Components high Top and bottom 25mm Control system Power supply 5line 3phase 380V 50/60Hz Total power 28kw Starting power 26kw Normal power consumption 4KW Warming time About 20 mins Temp.

setting range Room temperature-300℃ Temp.

control method PLC & PC Temp.

control precision ±1℃ Temp.

deviation on PCB ±2℃ Data storage Process Data and status storage(80GB) Nozzle plate Aluminum Alloy Plate Abnormal Alarm Abnormal temp.

(extra-high/extra-low temp.

) Board dropped alarm Tower light: Yellow-warming, Green-normal, Red-abnormal General Dimension(L*W*H) 4600*1100*1490mm Weight 1000KG Color Computer gray Packaging & Shipping

vaccum packing + wood 9 793877425896153956 Our Services Jaguar (2) Before buying the product, we will be a comprehensive analysis of the views and requirements and recommend it to the actual needs of customers with the most suitable products and let customers know that the performance characteristics of the selected product referred to in accordance with customers.

In purchasing the products, we promise to allow customers to clearly know the completion of the product.

In strict accordance with the relevant provisions of the contract terms of production, delivery, to ensure product intact and in place within the stipulated time to customer requirements.

Product during the warranty period, under normal storage, maintenance, use, if quality problems, responsible for the free repair or replacement, and provide the relevant maintenance knowledge; as a result of improper use or damage caused by the product does not work normally, the Company provides paid service.

Product warranty period is not, it will provide a paid service.

Company Information Shenzhen Jaguar Automation Equipment Co., Ltd (referred to as "Jaguar") is a High-speed developing enterprise of High Precision Automatic lead-free Equipment such as reflow oven and wave soldering machine manufacturer, which specializes in lead free machine research and development for years.

As one of the well-known lead-free electronics equipment manufacturers in China, JAGUAR was founded in 2009 and headquartered in Shenzhen.

so, what we can do for you and what kind of services we can offer?

1 - we can provide full SMT solution.

2 - we can provide you with top technical support.

3 - we have enrich experience on SMT factory set up.

4 - we can provide the best professional tech service.

5 - we can help you to deal with all the trouble about SMT.

6 - we are committed to provide the best solution to our clients.

6

FAQ

1) This is the first time I use this kind of machine, is it easy to operate? There is English manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ? Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ? 1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !) A.

Consult us about this product on line or by e-mail.

B.

Negotiate and confirm the final price, shipping, payment methods and other terms.

C.

Send you the proforma invoice and confirm your order.

D.

Make the payment according to the method put on proforma invoice.

E.

We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.

Send your order by air or by sea.

5)Why choose us ? A.

Gold supplier on Alibaba ! B.

Trade assurance to US$900, 000 ! C.

Best price & Best shipping & Best service ! 4 1103 1106
