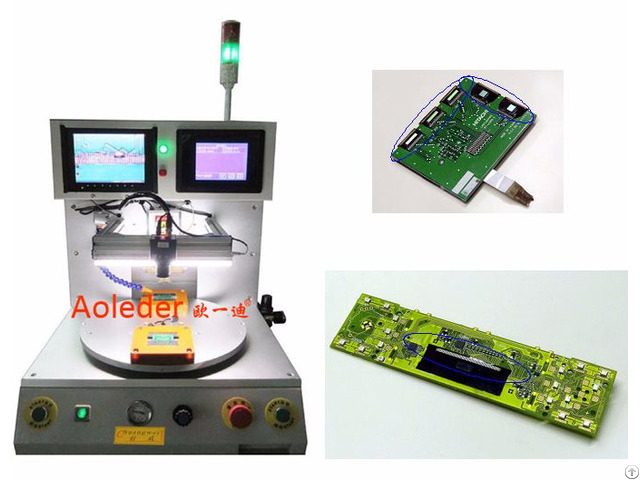

Hotbar Soldering Machine Fpc Hsc To Pcb Heat Bonding - China

Feature:

1 - According to different products, optional temperature for your choice.

2 - Unique material thermode head, ensure the average pressure

3 - Has vacuum function, easier for adjustment and positioning.

4 - NC temperature, clear and high precision

5 - With digital pressure gauge, pressure range can be preset.

6 - Microcomputer control, high accuracy and stable.

7 - Programmable curve Including pre-heating and reflow soldering temperature.

8 - Suitable for all kinds of high density TAB, TCP and pressure to FPC, FFC and PCB soldering pressure welding.

9 - Precise PID control, phase angle replace pulse drive.

10 - Less Libration, less noise, avoiding voltage fluctuate

11 - Rotable dual fixtures with high working efficiency

12 - Touch screen input data, simplify the operation.

13 - Real-time display temperature curve and temperature data Technical Parameters:

Machine size： 660×660×720mm

Working area： Max 120*120mm

Machine weight： 95Kg

Working air pressure： 0.6-0.8Mpa

Power supply： AC220V±10% 50HZ, 2200W

Temperature settings： Two

Working environment： 10~60℃, 40%~95%

Welding pressure： 1~20Kg

Temperature settings： RT~500℃ tolerance ±5℃

Pressing time： 1~99.9s

Welding precision： pitch 0.2mm

Thermode head size： Max 60*3mm

Fixture quantity: 2

Alignment mode： CCD + LCD Monitor

Feeding mode： Manual

Starting mode： Press two start button

Heating mode： heating pulse rise time of 1~2 seconds
