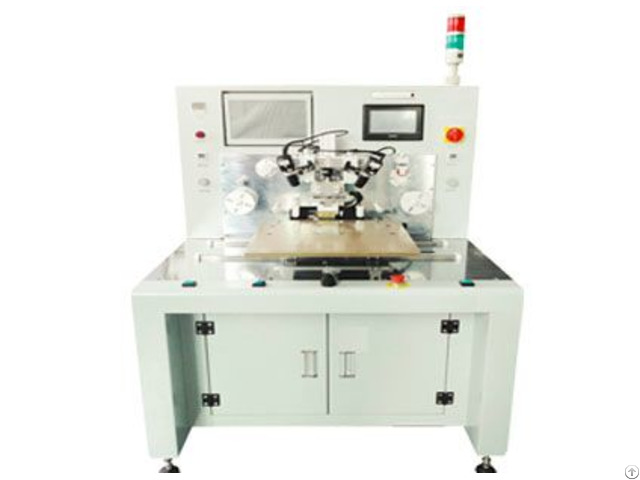

Lcd Pcb Fpc Tab Acf Attachment Machine - China

Application: The machine is used for tacking ACF onto LCD glass substrate during LCM production and repair line.

It is applicable to various c7 inch LCD panels.

■High precise micrometer adjust work table, which ensure the adjusting accuracy.

■Equiped with advanced PLC controller and colorfull human-machine operation interface, instant temperature curve display.

■High flexibility temperature feedback system can testing, rectifing and compensating temperature instantly, ensure temperature accuracy.

■Precise ACF auto rolling and cutting system, ensure ACF tacking accuracy.

■PLC program controller ensure the stability of machine, which can store 120 sets function parameters, makes the production conveniently.

■Auto-counting function make production control easily.

■Applicable to single and double-layers ACF protective removing, cutting and tacking, are widely used for LCD, PCB and FPC substrate.

■Accessories of machine: Imported and national brand slide rail, bearing, motor and other pneumatic components ensure the accuracy and stability of the machine.

Technical Parameter Adjusting Time: 0.1S～99S Operation Interface: Touch Panel Work Mode: In-out work Temp Accuracy: ±1℃ Temp Range: RT～399℃ Heat Mode: Constant Heat Safety Protection: Double buttons 供应气源: 0.3～0.8Mpa 外径￠8气管 Gas Source: 0.3～0.8Mpa Airpipe Outer ￠8 Voltage: AC220～240V 50Hz Power: 0.75KW Dimension: (L)530×(W)600×(H)470mm Weight: approx.

85KG
