Middle Size Wave Soldering Machine Price Practical Smt Welding Equipment - China

price: 9000.00 Dollar US$

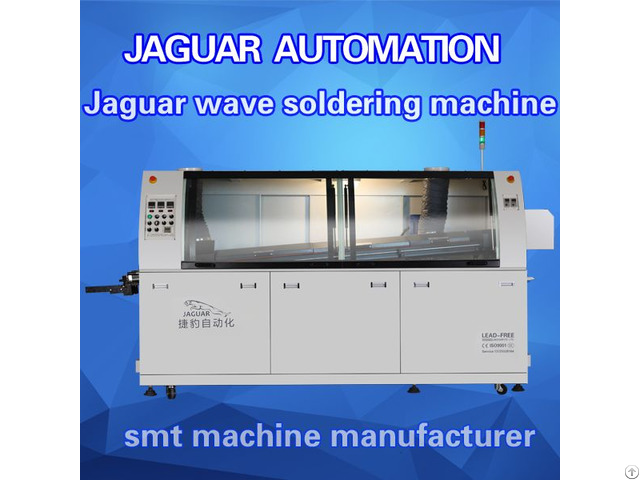

Middle Size Wave Soldering Machine Price Practical Smt Welding Equipment

Products Photos Catalog Middle Wave Soldering Photos Catalog

Specification: Model No.

JAGUAR N300 Number of heating zones 3 Length of heating zones 1450mm Body size 2950(L)*1250(W)*1560(H) Outside dimension 3750(L)*1250(W)*1560(H) Weight 1000KG Total/running power 19KW/5-7KW Air supply 0.5MPa Preheating method IR(standard)/Hot air Preheating power 220V 6KW Control method PC +PLC/press keys/Touch screen Range of temp.

control Room temperature---300ºC Preheating time About 10-15mins for setting 150ºC Solder type Lead-free / Sn-Pb Solder pot capacity 280KG Solder pot temperature 300ºC Solder power 380V 9KW Solder temp.

control method PID&SSR Wave crest drive power 1KW 220V Warm-up time of solder About 120mins for setting 250ºC PCB width 50-300mm Convey speed 0-1800mm/min Convey direction L→R (R→L optional) Convey angle 4-7 º Flux pressure/capacity 3-5 bar/5.2L INTRODUCTION:

1 - Efficient, energy-saving, lead-free, environment-friendly, safe and brand-new design, simple operation, convenient maintenance.

2 - Automatic power system, frequency converter control, automatic board input system.

3 - Flux sprays system using scanning spray nozzle, Japanese nozzles and rodless pneumatic cylinders and PLC control, accurate and reliable.

3 - Preheating system uses three independent temperature control so that ensure the excellent heat preservation, temperature uniformity, temperature difference no more than ±2ºC.

4 - Special alloy transportation chain claws, non-stick tin and ensures the quality of welding PCB board.

5 - Tin stove adopts imported high frequency conversion motor independent control, stable performance.

6 - Lead-free solder furnace with independent design, environmental protection and safety, 7 - easy to clean.

8 - Tin stove preheating furnace uses high-speed PID and 2 independent infrared heating (IR heating) control.

9 - Time can be controlled, we can preset switch functions, tin stove can heat within 90 minutes.

10 - With black box memory function, the machine can always store the production management records, improve work efficiency.

11 - Automatic claw cleaning function ensure the cleanliness of claws.
