Mini 3 Zones Reflow Ovens Smt Soldering Machine - China

Shenzhen Jaguar Automation Equipment Co., Ltd (referred to as "Jaguar") is a High-speed developing enterprise of High Precision Automatic lead-free Equipment such as reflow oven and wave soldering machine manufacturer, which specializes in lead free machine research and development.

As one of the well-known lead-free electronics equipment manufacturers in China, JAGUAR was founded in 2009 and headquartered in Shenzhen.

With full implementation of the PID process, reliability design concept and reliability testing throughout the entire product line, The company insists on market demand, established offices in various provinces and cities in the country.

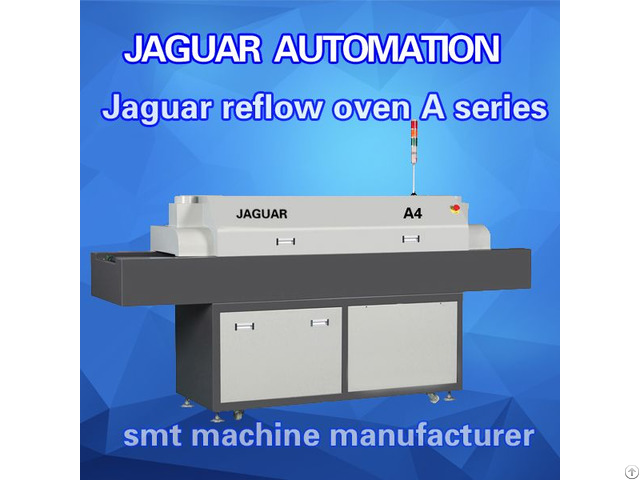

Product Description Reflow Oven Desktop Jaguar A3 (Conveyor) A3 reflow 2 Reflow Ovens for Low Volume Soldering The Jaguar Multi-zone A Series SMD reflow ovens are available for both conventional and lead-free solders.

They are designed to the highest standards and cost performance.

Reflow oven Jaguar A3 for small batch production runs with extremely uniform temperature profiling across the board for enhanced process control.

Three (3) heating zones Jaguar A3 IR Reflow Soldering Oven is a multi-function oven, suitable for a wide range of curing, drying and heat-treating applications.

With a 12" mesh belt conveyor, three independently controlled heat zones, the affordably-priced Jaguar A3 can be used to produce accurate, in-line, time/temperature profiles to meet your specific processing requirements.

Key to the reflow oven precision and reliability is an innovative and compact design for efficient heat transfer and maximum thermal stability.

1 Three independently controlled heat zones; 2 PID temperature control from room temperature to 400°C (750°F) 3 300 mm (12") wide stainless steel mesh conveyor with speed variable from 200-1800mm (7.8-70.8") 4 Only 1400 mm (55") long, heat length 1000mm (39") 5 Bench-top models, small space, suitable for low-middle batch production.

6 Advanced long life heating system, high heating efficiency; fast warm up with force hot air convection structure makes PCB and SMD temperature uniform; 7 Temperature alarm and fault diagnosis function; 8 SSR no touch output with temperature controller to monitor environment temperature change; temperature accuracy is 1; 9 The upper oven body can be open; clean and maintenance are available.

Machine model: Bench top Reflow oven Jaguar A3 Heat zones upper 3 zones Heat length 1000mm Heat way Infrared and Hot air Transmission system PCB width 300mm Transmission direction L-R (R-L) Component height 880±20mm Transmission Mesh Transmission speed 200-1800mm/min Controller system Power supply AC 220V 50/60Hz Power consumption 5Kw Working consumption Approx 2KW Warm up time About 15 Minutes Temperature range Room temperature-400 Temperature controller PID closed loop, SSR driven/IPC Temperature accuracy 1 Temperature difference on PCBs 2 Alarm function Yes (over-high or over-low temperature) Machine body Weight L1400*W600*H700mm Dimension Approx 150Kg
