Mini Reflow Oven Solder Machine Automatic Led Assembly Line - China

price: 3500.00 Dollar US$

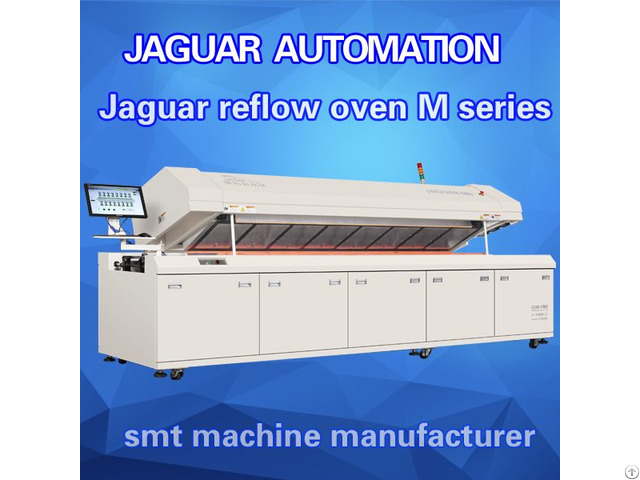

Mini Reflow Oven Solder Machine Automatic Led Assembly Line

Products Photos Catalog Mini Reflow Oven Photos Catalog

Specification: Model JAGUAR M6 Heating System Number of heating zones UP 6/BOTTOM6 Length of heating zones 2500MM Heating mode hot air Cooling Mode Force air Cooling zones Up 1 bottom 1 Conveyor System Max.

Width of PCB 350mm Mesh belt width 400mm Transmission Direction L→R(or R→L) Transmission Net Height 880±20mm Transmission type Mesh and chain Range of rail width 0-300mm Conveyor speed 0-1500mm/min Auto/manual Lubrication standard Upper hood method Manual(option: auto) Fixed rail side Front rail fixed(option: rear rail fixed) Components high Top 30mm and bottom 25mm Control system Power supply 5line 3phase 380V 50/60Hz Total power 24kw Starting power 18kw Normal power consumption 4KW Warming time About 20 mins Temp.

setting range Room temperature-300℃ Temp.

control method PLC & PC Temp.

control precision ±1℃ Temp.

deviation on PCB ±2℃ Data storage Process Data and status storage(80GB) Nozzle plate Aluminum Alloy Plate Abnormal Alarm Abnormal temperature.

(extra-high/extra-low temp.

) Board dropped alarm Tower light: Yellow-warming, Green-normal, Red-abnormal General Dimension(L*W*H) 3600×1100×1490mm Weight 900KG Color Computer gray Packaging & Shipping

vaccum packing + wood 9793877425896153956 Our Services Jaguar (2) Before buying the product, we will be a comprehensive analysis of the views and requirements and recommend it to the actual needs of customers with the most suitable products and let customers know that the performance characteristics of the selected product referred to in accordance with customers.

In purchasing the products, we promise to allow customers to clearly know the completion of the product.

In strict accordance with the relevant provisions of the contract terms of production, delivery, to ensure product intact and in place within the stipulated time to customer requirements.

Product during the warranty period, under normal storage, maintenance, use, if quality problems, responsible for the free repair or replacement, and provide the relevant maintenance knowledge; as a result of improper use or damage caused by the product does not work normally, the Company provides paid service.

Product warranty period is not, it will provide a paid service.


Company Contact:


  • Phone: 18680672407

  • Address: Building A07,Jinyuan In dustrial Zone,Hongtian  Road,Xinqiao Street, SHENZHEN , Guangdong , China

  • Email: Email


Published date: March 23, 2018

  • Business Description: SMT automation equipment

    reflow oven

    wave soldering machine

    pick and place machine

    solder paste printer
