Nickel Plated Brass 90d Anlge - China

price: 0.78 Dollar US$

Nickel Plated Brass 90d Anlge

Products Photos Catalog Nickel Plated Brass Photos Catalog

Model: LTCM-B21

Description:

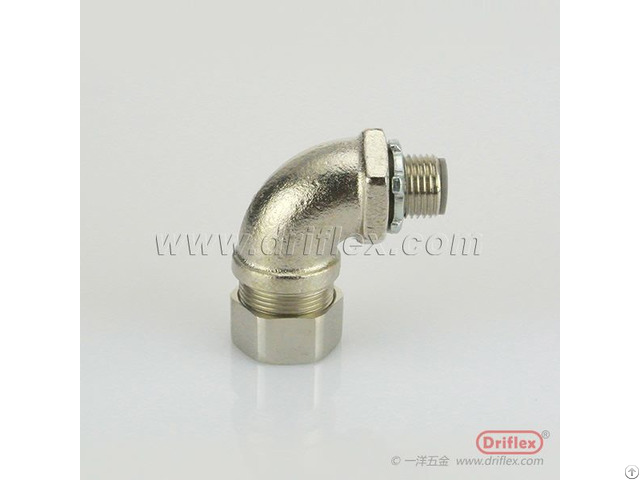

Brass Conduit Fittings-Nickel Plated/90d Angle

Structure:

Connector body with hexagonal wrench surface, thread ISO metric in accordance with EN60423 or thread NPT in accordance with ANS/ASME B1.20.1-1983, Comply with stands AS/NZS 2053 - 8, hexagonal pressure nut, sealing ring and ferrule

Material:

Connector body - nickel plated brass.

Hexagon pressure nut - nickel plated brass.

Sealing ring - Nylon 66

Ferrule - Galvanized steel

Features:

Simple, one piece installation provides a quick and reliable liquid-tight seal

IP rating from IP40 to IP66/67/68 in combination with the corresponding flexible conduits

High mechanical strength

Highly liquid-tight and dustproof

Vibration and tensionproof

Inherently low fire hazard

Covering of the conduit ends

Available in straight, 45o and 90o bodies

Available in ISO Metric and NPT , PF, PG, BSP etc.

threads

Applications:

General indutrial and commerical electrical wiring protection

Machining centres and robotics

any narrow space in static applications

General wiring for OEM applications

Low fire hazard applications

Underflooring wiring in office buildings

Machine tools

Installations where liquid-tight is a requirement

Outdoor installation


Company Contact:


  • Phone: 022-66282962

  • Address: No.95, The 4th Avenue, TEDA, Tianjin 300457, PR China, Tianjin , tianjin , China

  • Email: Email

Published date: January 18, 2017

  • Business Description: Tianjin Driflex Co., Ltd. is a leading manufacturer and supplier of high quality metallic conduit fittings and flexible conduit based in China.

    Driflex main products includes: Conduit fittings, Liquid-tight conduit fittings, Explosive-proof fittings, Stainless steel cable glands, Nickel plated cable glands, Reducer, Female connectors, EMT connectors, Non-jacketed metallic flexible conduit, PVC Jacketed metallic flexible conduit, Liquid-tight metallic flexible conduit, Explosive-proof conduit, Interlocked / squarelocked stainless steel flexible conduit and Nylon conduit.
