Piezo Forceps Gripping Displacement To 80um For Wire Bonding Machine - China

According to the requirements of automatic wire bonding machine, CoreMorrow produces piezo clamp, which is designed and developed for clamping wire.

It feaures a simple structure, fast response and high resolution.

Characteristics

• Displacement to 100μm

• Sub-millisecond response time

• Resonant frequency to 1.5kHz

• Small size Principle

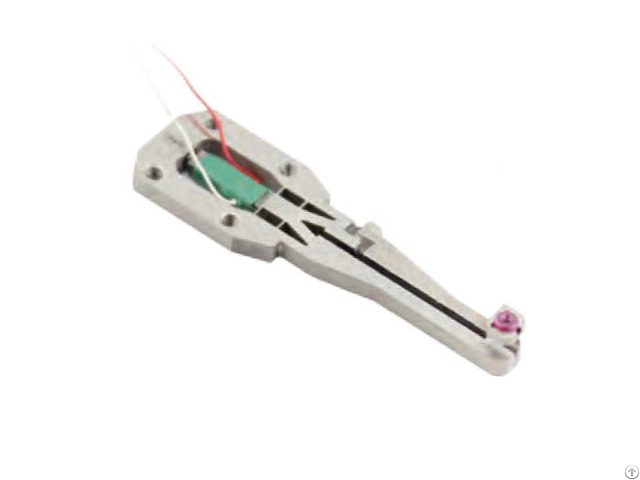

The structure of piezo clamp is composed of piezo stack, flexible mechanical structure, fixed jaw and adjustable jaw.

Piezo stack is installed between clamping jaw and the base.

When voltage is applied to piezo stack, the output displacement of the piezo stack is amplified by the lever arm of the clamping jaw and outputed in the top end of the closed.

After the voltage is removed, the of clamp jaws return to initial position.

Technical Data

Type: XD002.90K

Active axes: X

Travel range(0~120V): ±40 µm±20%

Travel range(0~150V): ±50 µm±20%

Push/pull force capacity: 10/1 N

Stiffness: 0.04 N/μm±20%

Unloaded resonant frequency: 1500 Hz±20%

Unloaded step time: 0.7 ms±20%

Unloaded operating frequency: 300 Hz

Load capacity: 0.05kg

El.

Capacitance: 0.18μF±20%

Material: Steel

Mass: 10 g±5%

Power-on jaw status: Open You can contact us for other specifications and models.
