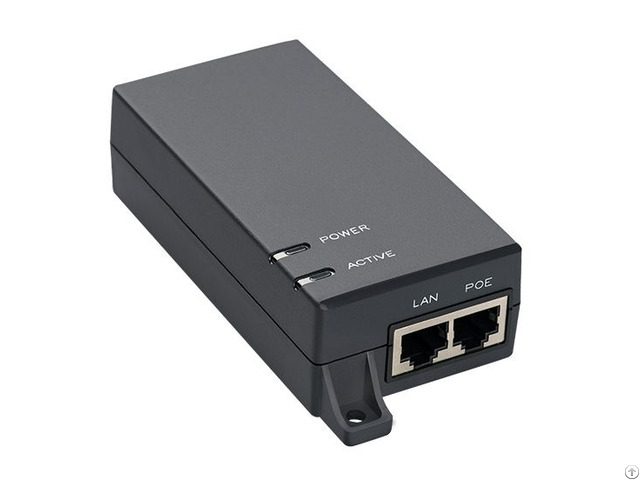

POE Injector For Pos PT-PSE100G-24

PT-PSE100G-24 is a single port midspan Injector with 2 Pair PoE up to 26 watts of power at 24 VDC at 1100 amp.

Designed for the outdoor PoE Injector, such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 0/100/1000Mbps of data rates.

Fully comply with IEEE802.3af compliant devices.

Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.

Enclosed in an IP40 fire retardant plastic case, designed for indoor installation with wall-mounted.

It operates with a wide input voltage of 100-240 VAC, 50 or 60 Hz.

The effective distance limitation of 100 meters over Cat5e/Cat6 cables.

Can be extended with the PT-PEX-01G-OT(Outdoor or Indoor PoE Extender).

The POE Injector are Enclosed in an IP40 fire retardant plastic case, designed for indoor use, installation with Wall-mounted.

We are PoE Injector supplier and more information you can view here

We provide high quality PoE Injector, outdoor PoE Injector, POE for DIN Rail, dc poe injector and soon.

high quality PoE Injector Specifications

Parameter Description

Key Features 24VDC output voltage Wall-mounted

Part Number PT-PSE100G-24

Ports condition LAN Port*1, AC Input Port*1, PoE Output Port*1

Regulatory Compliance IEEE802.3af RoHS Compliance WEEE Compliance

Pass Through Data Rates 10/100/1000 Mbps

Output Pin Assignment and Polarity: 4/5 (+), 7/8 () Output Power Voltage: 24Vdc User Port Power: 26W Guaranteen

Input AC Input Voltage: 100 to 240 Vac Frequency: 47 to 63Hz (50/60Hz Typ.

) DC Input Current: 1A

Working Environment Operating Temperature: 0℃to 40℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -20℃to 70℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 2000meters

PoE Surge Protection Protected line: 1, 2, 3, 4, 5, 6, 7, 8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV

AC Surge Protection Line-Earth 1.2/50us (8/20us): 2KV Line-Line 1.2/50us (8/20us): 1KV

Mechanical Characteristics Case: Plastic Color: Black Mounting: Wall-mounted IP Rated: IP40 Connectors: Shielded RJ-45*2 Size: 134mmX 56mmX 33mm Weight: 150g5.3oz

LED Indicator Power Indicator : Green PoE Load Indicator : Green

Warranty 2 year

Safety Approvals CE/FCC
