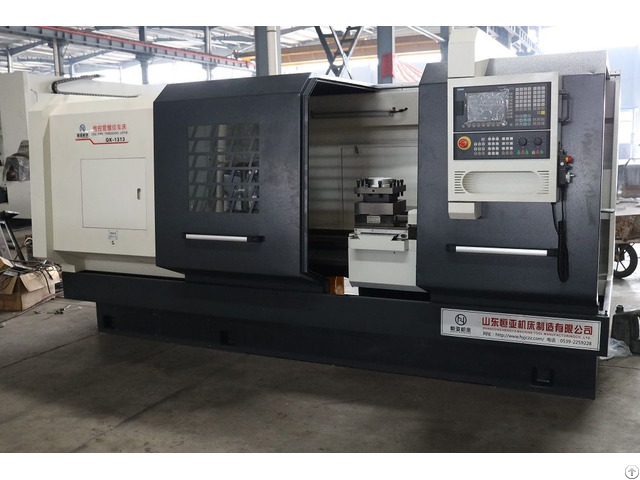

Qk1313 Cnc Pipe Threading Machine - China

QK1313 CNC pipe thread lathe can process all kinds of thread precisely, can cut Metric and British cylindrical and conical pipe threads, and can realize the function of CNC lathe.

ATTRIBUTE

Color: Black Gray White

Material: Cast Iron

Standard: API

Industries: Machinery

Application: Casing Tubing Petroleum

PRODUCT DESCRIPTION QK1313 CNC pipe thread lathe can process all kinds of thread precisely, can cut Metric and British cylindrical and conical pipe threads, and can realize the function of CNC lathe.

It is suitable for processing tubing, casing and drill pipe in petroleum, metallurgy, chemical industry, water and electricity, geology and other departments.

PRODUCT APPLICATION This machine is suitable for processing all kinds of oil casing parts, pipe coupling parts, drill pipe joints and all kinds of large diameter, super long and only need to process one end of the various parts.

The machine can complete turning of outer circle, inner hole, and all kinds of thread, arc, conical and rotary body inner and outer surface.

It is suitable for high efficiency, large quantity and high precision processing of oil casing and drill pipe joints and other ultra-long rotating parts in petroleum industry.

MACHINE PERFORMANCE AND CHARACTERISTICS 1 - Mechanical, electrical, hydraulic integration and modular design, reasonable layout, compact structure, pleasant operation, convenient maintenance.

2 - The machine adopts horizontal bed, mountain line - plane bed, resin sand casting process, reasonable internal rib layout, wide guide surface, high overall rigidity of the bed.

It has the characteristics of fast processing speed and high processing precision.

3 - The ball screw with C3 level precision leadscrew, dustproof silk mother, longitudinal and transverse feed servo motor directly connected to ball screw through the coupling, ball screw support way, using an end fixed end this way of support can make the screw end it can extend freedom, in order to avoid the work due to temperature increase during the process of screw elongation, In order to compensate for the elongation of the lead screw caused by the rise of the working temperature and ensure the positioning accuracy of the lead screw and the rigidity of the ball screw system, the lead screw is pre-stretched and pre-tightened according to a certain thermal elongation before assembly to eliminate the influence of temperature rise on the accuracy.

4 - The sliding parts of the machine should have automatic lubrication device.

The machine protection is safe, reliable and effective.

5 - Vertical four-station electric tool rest, repeated positioning accuracy of ±0.003mm.

Maximum main cutting moment is 3300Nm, maximum output torque is 1250Nm, suitable for heavy cutting.

6 - Chuck self-centering three-jaw chuck of park brand, double chuck structure before and after the main shaft, convenient and reliable loading and unloading, can distribute material, reduce the labor intensity of the operator.

7 - Screw and guide rail adopt centralized quantitative automatic lubrication device, lubrication is fully reliable, lubrication cycle automatic control.

8 - Cooling and chip removal system: the machine adopts full guide rail protection form, chip removal is convenient, and the main cooling box is separated, to ensure the accuracy of machine from the impact of cutting heat.

The cooling pump with large flow and high head can get strong cutting cleaning and cooling effect.

In the turning process, the workpiece and the tool are fully cooled to ensure the machining accuracy of the workpiece and improve the service life of the tool.

9 - No water leakage, oil leakage, abnormal noise phenomenon, closed protection, machine water separation design, easy to use, operation, maintenance, beautiful appearance, excellent after-sales service.

10 - The measuring units of all parts, components and various instruments of the machine adopt international standards.
