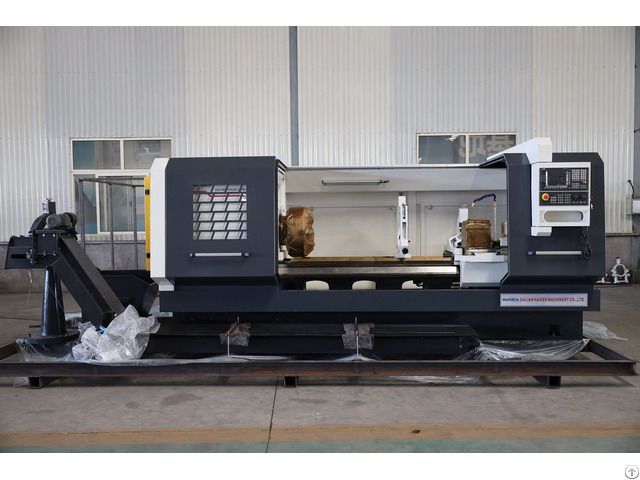

Qk1319 Cnc Pipe Threading Machine - China

The CNC pipe thread lathe QK1319 produced by our company adopts international VDI/DGQ3441 standard and is designed according to the requirements of pipe thread processing industry.

ATTRIBUTE

Color: Black Gray White

Material: Cast Iron

Standard: API

Industries: Machinery

Application: Casing Tubing Petroleum More information please visit our website

PRODUCT DESCRIPTION The CNC pipe thread lathe QK1319 produced by our company adopts international VDI/DGQ3441 standard and is designed according to the requirements of pipe thread processing industry.

QK1319 CNC pipe thread lathe can process all kinds of thread precisely and realize the function of CNC lathe.

The machine adopts semi-closed protection device, precision ball screw for feeding, automatic lubrication system and automatic clamping mechanism of front and rear three-jaw chucks.

PRODUCT APPLICATION QK1319 CNC pipe thread lathe is suitable for thread processing of oil pipeline, drill pipe, tubing & casing in petroleum, chemical and metallurgical industries.

MACHINE PERFORMANCE AND CHARACTERISTICS 1 - QK1319 CNC pipe thread lathe has the characteristics of high rigidity, high precision and so on.

2 - The main machine adopts high rigidity bed base design, bed saddle, sliding body movement surface is attached with plastic guide board.

3 - The main drive system of the machine is SIMENS 808D.

The machine can be controlled easily and quickly by NC to achieve stepless speed regulation.

4 - The machine adopts mechatronics structure, the normal machining accuracy of the machine can reach IT7, and the surface roughness of the workpiece can reach Ra1.6 - 5 - The machine adopts front and rear double chuck system.

6 - The feeding system, the bed saddle moves along the bed in the z-axis direction by the Z-axis servo motor through the coupling directly drive the ball screw drive; The tool rest on the bed saddle moves in the X-axis direction by the X-axis servo motor directly through the coupling to drive the ball screw.

7 - The spindle of machine should be designed with high precision and high rigidity.

8 - Guide form: horizontal bed, mountain - plane combination guide form.

9 - Vertical four-station electric tool rest, repeated positioning accuracy of ±0.003mm.

Maximum main cutting moment is 3300Nm, maximum output torque is 1250Nm, suitable for heavy cutting.

10 - Lubrication of the headstock is provided by the oil pump system inside the headstock.

The lubrication of saddle and slide plate is supplied by the lubrication system.

Item Unit QK1319

NC System Standard configuration: GSK980TC3

Optional configuration: FANUC 0i Mate Td; FANUC 0i Td; SIMENS 808D; KND K1000Ti; GSK980TDC

Max dia.

swing over bed mm 630

Max dia.

swing over cross slide mm 330

Max.

length of work-piece mm 1500

Width of bed mm 550

Spindle bore mm 200

Power of spindle motor Kw 11

Mode of spindle speed Two gears, smooth adjustment

Range of spindle speed r/min L: 25-120

H: 100-500

Max.

traverse of X/Z mm X: 350

Z: 1250

X/Z rapid traverse mm/min 4000

X-axis motor Speed r/min 1500 Torque N.

m 10 Power Kw 1.5 Speed r/min 1500

Z-axis motor Torque N.

m 15 Power Kw 2.3

Tailstock quill Diameter mm 100 Travel mm 250 Taper Morse NO.

5

Electric tool-post Model HAK-21240 No.

of tool stations Vertical four-station Dimension mm 240×240 Turret indexing time S 2.6

Chuck K11-500 three jaw chuck

Positioning accuracy mm 0.020

Repositioning accuracy mm 0.01

Overall dimensions(L*W*H) mm 3700×1755×1800

Machine weight T 4.6 PACKAGING & DELIVERY 1 - Steel pallet and iron sheet are packaged together.

2 - Shipping, train or base on clients requirement.

USTOMERS Liuzhou Biaohuang Machinery Equipment Co., Ltd. is a professional for CNC pipe thread lathe manufacturer and they have best price with high quality, we have excellent experience for export sales, we have been sold to America, Dubai, Saudi Arabia, Yemen, Egypt, Indonesia, Vietnam, Malaysia, Singapore, Thailand and Africa etc.

If you have any requirement please contact us, more information and product video will be offered for your reference.

OUR SERVICES 1 - Best quality 2 - Fast delivery 3 - Professional technical support 4 - We have been 15 years of experience in export sales.

5 - We are machine reputable manufacturer, and also have after sales service.
