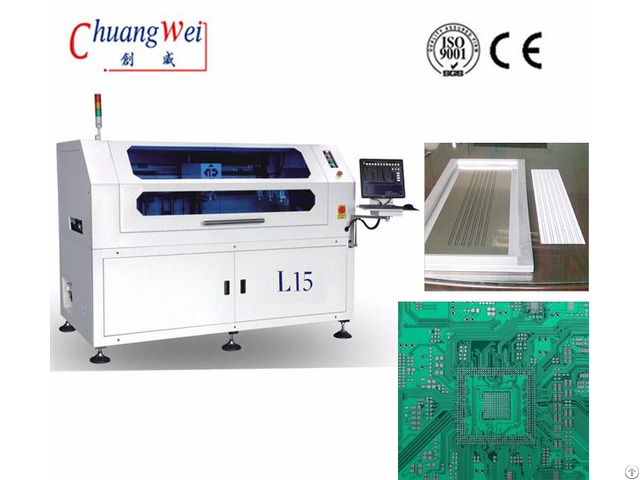

Smt Solder Paste Printer Precise Printing Machine - China

1 - Scraper system:

*Arch bridge hanging straight with scraper

*Programmable suspension self-adjusting stepper motor drive print head.

*Bilateral double-slider four-wheel-type structure to ensure that the scratch before and after the operation of the accuracy and smoothness.

*Designed for the different requirements of the front and rear scraper pressure and the stability of the lift, to prevent the solder paste leakage and the blade has a certain flexibility of the clamping design, scraper pressure, lifting speed, printing speed, printing range are software adjustable to provide customers with a variety of stripping methods to meet the different requirements of the PCB board, to provide customers with a good printing control platform.

*slide-type scraper system to improve operational stability and extend the services life;Fully closed ring scraper pressure feedback device, always monitor the size of the squeegee pressure, making the tin more full.

2 - Steel mesh positioning system:

*Size steel mesh universal, with good and wide applicability

*Using imported SMC cylinder as a steel mesh cylinder.

3 - Image and optical system:

*X, Y-axis with a high degree of Japan Koda grinding screw, both ends of the Japaneses Mastushita motor drive

*The internal increase in polarizer, automatic and accurate grasp of different types of MARK points.

Up, down and coadal three-way light source

*Using the Japanese Toshiba industrial camera.

4 - PCB transport and positioning system:

*Into the board direction of any choice, can be freely combined

*Special craft of the inner gear conveyor belt to prevent the card board

*Programmable transport speed control makes boarding more accurate

*The use of the clip and vacuum suction chamber, effective clamping PCB ensure that the PCB and steel mesh between the full smooth contact.
