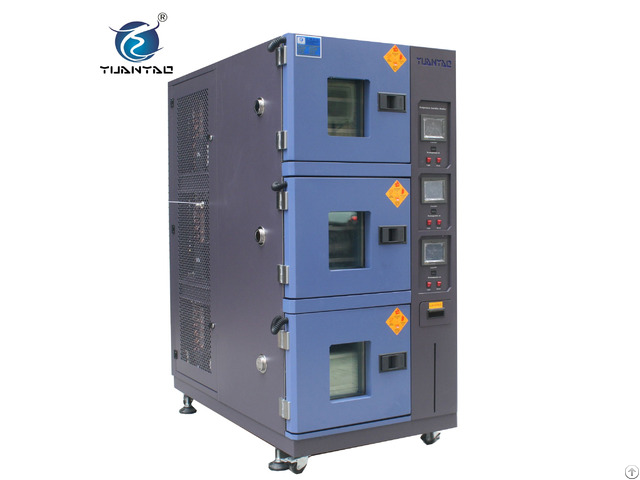

Three Zones Temperature Humidity Environmental Tester Chamber - China

Triple Type Constant Temp.

Humi.

Environmental Tester Application:

Three Layers Constant Temperature and Humidity Test Cabinet, used for material performance test under different environment, such as heat, cold, moisture, heat and moisture, mainly applied in electronics, electrical appliances, mobile, communications, instruments, vehicles, plastic products, metals, food, chemicals, building materials, medical, aerospace and other industries.

Triple Type Constant Temp.

Humi.

Environmental Tester Features:

1 - Touch screen controller.

2 - Automatic water filling(optional).

3 - Access to PC remote control and monitoring.

4 - Customization services.

5 - With national patents.

Triple Type Constant Temp.

Humi.

Environmental Tester High low temperature tester Specification: Three Zones Temperature Humidity Chamber

Model YTHG-072 YTHG-162

Inner chamber size W×H×D(cm) 100×40×40 60×45×60

Exterior chamber size W×H×D(cm) 100×200×170 120×215×185

Testing temperature range -70ºC, -60ºC, -40ºC, -20ºC, 0ºC~150ºC, Other temperture can be customized

Testing humidity range 20%RH~98%RH(low humidity 10% RH~98RH or 5%RH~98%RH can be customized

Temp.

humi.

fluctuation ±0.3ºC;±0.5%RH

Temp.

humi.

uniformity ±2ºC;±3%RH (empty loading after stablize for 30mins)

Temp.

humi.

resolution 0.01ºC;0.1%RH

Heating&cooling time ºC/min Heat-up: 3ºC/min(average) , cool-down: 1ºC/min(averag e)

Exterior chamber material Cold rolled plate + Powder coating

Inner chamber material SUS#304 Stainless steel

Insulation material PU+ fiberglass wool

Circulation system Centrifugal fan air circulation system

Heating system SUS# Stainless steel high-speed heater

Humidification system Electrothermal steam humidification

Dehumidifying ADP critical dew point cooling/ dehumidifying method

Refrigeration system Compressor + Finned evaporator + Air(Water) cooling condenser Controlling system Touch screen controller+SSR+PID

Other components Vacuum glass observation window

Test hole (50mm), Control status indicator

Interior light, Compartment shelf (2 freely adjustable)

Safety protection device Humidification system overheat protection, Compressor overload protection

Control system overload protection, overload indicator

Phase sequence protection, Water shortage protection

High voltage and low voltage protection, Over temperature protection

Water supply dely protection, Fan overcurrent protection

Power supply AC 1ψ 220V; 3ψ380V 60/50Hz

Customization service No-standard or special requirements are all welcome

2 - We produce in strict accordance with international safety standard.

More detail of temperature humidity tester
