Top Quality 3 Zones Dual Wave Soldering Machine For Pcb Assembly Line - China

price: 12000.00 Dollar US$

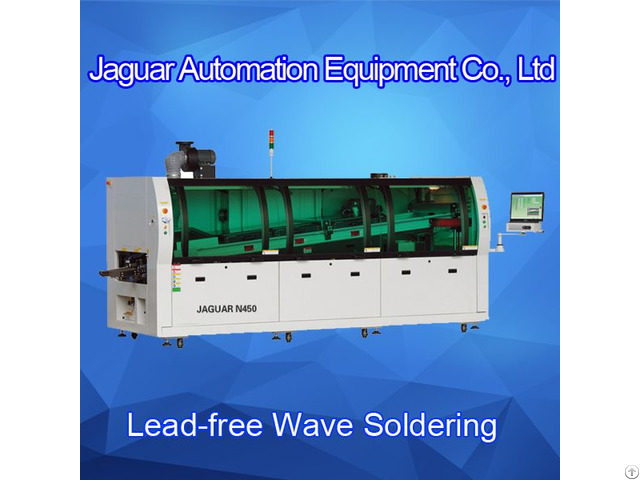

Top Quality 3 Zones Dual Wave Soldering Machine For Pcb Assembly Line

Products Photos Catalog Zones Dual Wave Photos Catalog

Specification: Model No: JAGUAR N450 Number of heating zones: 3 Length of heating zones: 1800mm Total/running power: 30KW/8-11KW Air supply: 0.5MPa Preheating method: Micro hot air Preheating power: 220V 8KW Control method: PC +PLC Range of temp.

control: Room temperature---300ºC Preheating time: About 10-15mins for setting 150ºC Solder type: Lead-free / Sn-Pb Solder pot capacity: 400KG Solder pot temperature: 300ºC Solder pot material: Pure titanium(standard) Heating emitter power: 380V 8KW Solder temp.

control method: PID+SSR Wave crest drive power: 1KW 220V Wave crest height Control: Frequency converter Warm-up time of solder: About 180mins for setting 250ºC PCB width: 60-450mm Component clearance: Top 120mm(option 160mm) Bottom 15mm Convey speed: 0-2000mm/min Convey height: 750+/-20mm Convey direction: L→R (R→L optional) Convey angle: 4-7 º Convey width adjustment: Manual UPS: Option Nitrogen structure: Option Flux pressure/capacity: 3-5 bar/6.5L Weight: 1100KG Power Requirement: 3P5W, 380/220V 50Hz 63A Dimensions: 4300(L)*1400(W)*1560(H) INTRODUCTION: 1 - Efficient, energy-saving, lead-free, environment-friendly, safe and brand-new design, simple 2 - Automatic power system, frequency converter control, automatic board input system.

3 - Flux sprays system using scanning spray nozzle, Japanese nozzles and rodless pneumatic cylinders and PLC control, accurate and reliable.

4 - Preheating system uses three independent temperature control so that ensure the excellent heat preservation, temperature uniformity, temperature difference no more than 2.

±2ºC.

5 - Special alloy transportation chain claws, non-stick tin and ensures the quality of welding 3 - PCB board.

6 - Tin stove adopts imported high frequency conversion motor independent control, stable performance.

7 - Lead-free solder furnace with independent design, environmental protection and safety, e asy to clean.

8 - Tin stove preheating furnace uses high-speed PID and 2 independent infrared heating (IR 4 - heating) control.

9 - Time can be controlled, we can preset switch functions, tin stove can heat within 90 minutes.

10 - With black box memory function, the machine can always store the production management records, improve work efficiency.

11 - Automatic claw cleaning function ensure the cleanliness of claws.

12 - Reasonable design and sensitive fault security alarm system ensure the stable performance and operators’ safety.

13 - Nitrogen Structure(optional): High accuracy Oxygen analyzer, Nitrogen consumption of 16m3/hr based on 300-500ppm.
