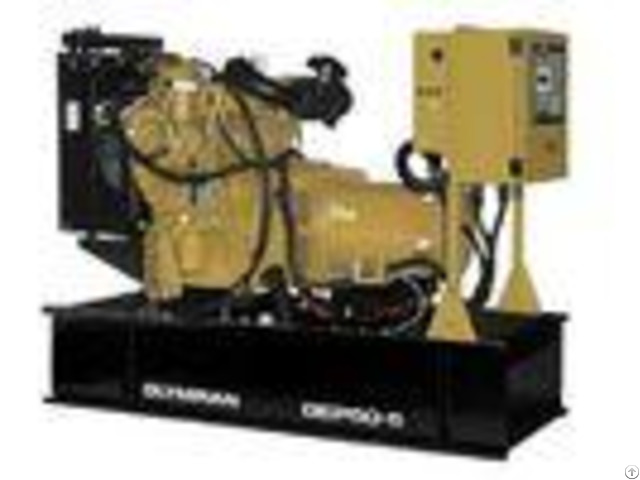

Water Cooled Caterpillar Olympian Generator - China

1, Generating Set Model: GEP57 2, Engine Make & Model: Perkins1103A-33TG1 3, Alternator Model: LL2014C 3, Circuit Breaker Type: 3 Pole MCCB 4, Frequency: 50 Hz 5, Cycle: 4 Stroke 6, Engine Speed: 1500 rpm 7, Cooling Method: Water 8, Governing Type: Electronic 9, Output Type: AC Three Phase 10, Base Frame Type: Heavy Duty Fabricated Steel FEATURES GENERATOR SET Complete system designed and built at ISO 9001 certified facility Factory tested to design specifications at full load conditions Fully engineered with a range of options and accessories ENGINE Industrial water cooled diesel engine Isochronous electronic speed control Governor, electronic Electrical systems, 12 VDC Cartridge type fuel and oil filters Air filter Lube oil drain valve Battery(ies), rack and cables GENERATOR Self excited brushless generator Insulation system, class H Drip proof generator air intake (IP23) Electrical design in accordance with BS5000 Part 99, IEC60034-1, VDE0530, UTE5110 CONTROL SYSTEM 1001 keystart control panel Vibration isolated sheet steel enclosure with hinged lockable door MOUNTING ARRANGEMENT Heavy-duty fabricated steel base with lifting points Anti-vibration pads to ensure vibration isolation Generator coupled to engine by flexible disc-coupling Baseframe incorporates heavy-duty fabricated steel fuel tank, 8 hours running capacity EXHAUST SYSTEM Heavy duty industrial capacity exhaust silencer (approximately 10 dBA reduction) supplied loose COOLING SYSTEM Standard ambient temperature up to 50 (122) Fan, fan drive and charging alternator fully guarded Antifreeze protection coolant CIRCUIT BREAKER 3-pole molded case circuit breaker (MCB)<160 amps and 3-pole molded case circuit breaker(mccb) Vibration isolated sheet steel enclosure with removable cover plate Outgoing cable stub-up area directly below circuit breaker AUTOMATIC VOLTAGE REGULATOR Voltage regulation 0.5% Provides fast recovery from transient load changes EQUIPMENT FINISH All electroplated hardware Anticorrosive paint protection High gloss polyurethane paint for durability and scuff-resistance QUALITY STANDARDS BS4999, BS5000, BS60034, IEC61000, VDE60034 DOCUMENTATION Operation and maintenance manuals provided Wiring diagrams included WARRANTY All equipment carries full manufacturers warranty SPECIFICATIONS ENGINE Manufacturer Perkins Model1103A-33TG1 Type4 Stroke Aspiration Turbocharged Air-to-Air Charge Cooled Cylinder configurationIn-line 3 Displacement L (cu in) 3.3 (201) Bore/Stroke mm (in) 105/127(4.1/5.0) Compression ratio 17.25: 1 Engine speed (rpm) 1, 500 Maximum power at rated rpm kW (hp) 50 Hz Standby42.2(57.0) BMEP kPa (psi) 50 Hz Standby1125 (163) Regenerative power kW 7.0 Governor TypeMechianical ClassISO 8528 G2 GENERATOR Manufacturer Olympian Model LL2014C Type Self-excited, brushless Insulation class H Winding pitch code 2/3 6S Wires 6 Ingress protection rating IP23 Excitation system AREP Voltage regulation (steady state) (%) 0.5 Wave Form NEMA = TIF<.

50 Wave Form IEC = THF <2.0% Total harmonic content LL/LN 2.5% Radio interferenceSuppression is in line with European Standard EN61000-6 GENERATOR SET DIMENSIONS AND WEIGHTS - - - - Model | Lenghth | Width | Height | Weight | GEP50-5 | 2149mm(84.6 in) | 752 mm(29.6 in) | 1366mm (53.8 in) | 910kg(2006lb) | - - - -
