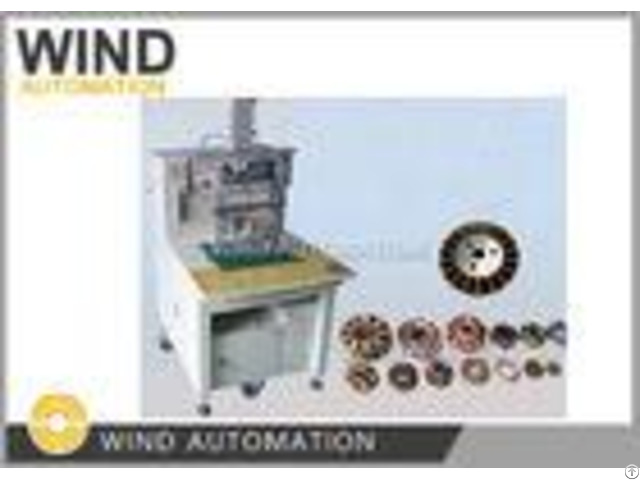

Brushless Motors Outrunner Stator 12pol/36pol Flyer Winding Machine WIND-MMW-1 Application: - - - - Model motors | Flying Models, Airplane Aircraft Helicopter Motor stator | Outrunner motors | Fan motor stator, Ventilator, Ceiling fan stator, Toy motor, | Wheel motor | Skateboard Wheel Motor Stator, Electric Scooters, Auto balance scooter, Self balanced vehicles motor stator | Big size outside stator | | - - - - Advantages: - - - - Basic flyer winding one by one slot | Easy to adjust and operate, dedicated machine for Model motors stator | Common Slot no.

range | 2 to 24slots | Muti wires handled | 30pcs wires | - - - - Parameter: Wire diameter: 0.10~0.60mm Operation option: Auto Automatic winding, automatic indexing, automatic winding arranging, automatic clamping and cutting Stator slot no.

: 2 to 24slots (other slots custom made) Wire displacement: 60mm Power suplly: AC220V 50/60Hz Weight: about 350kgs Dimension: 1260(L)x650(W)x1150(H)mm Characteristics of brushless motor: 1 - Size If you choose brushless DC motor, you will see many similar models, such as 2216, 2814 and so on.

The top two are stator outer diameter (mm) and the last two number is stator height (mm).

The bigger the outer diameter and the height of the stator, the greater the core of the stator and the more the number of winding turns, the bigger power of the motor.

Of course, the larger of motor stator size, the greater the power, but the heavier the weight.

If a motor is 2216, the stator's outer diameter is 22mm, and the stator height is 16mm.

The stator outer diameter and stator height are proportional to the power of the motor, and obviously the 2218 is higher than the 2212 of the motor stator, andthe power of 2218 must be bigger than 2216 - The size of the model can see the power two of the two motor with same OD, but this is generally for the same stator diameter and different height.

or same stator height different stator diameter.

If the brushless motor stator height and stator outer diameterare not same as, it is difficult to compare withmodel.

It should be noted that this dimension refers to the stator itself, not the size of the motor, the thickness of the motor shell, the shape of the heat dissipation, the height of the base and so on, which all affect the external size of the motor, so the judgement of the power using the stator size is standard and reliable than that of the external size.

2 - Number and pole number of motor slots 1) The number of slots (N): the number of grooves in the stator core.

A brushless motor is a three-phase motor, so the number of grooves is a multiple of 3 - 2) The number of poles (P): the number of magnetic steel on the stator, the magnet must be used in pairs of the north and south poles, and the number of poles must be even.

The slot number and pole number of the motor are directly written as the number of slot number N pole number P, such as 12P14N, which is the meaning of the 14 pole of the 12 slot.

3) Characteristics of the number of slots and the number of poles a.

The number of slots (N) and the number of poles (P) are inversely proportional to the maximum speed, the smaller the number of slots (the number of poles), the higher the best speed of the motor.

For example, the highest speed of 9N12P is higher than that of 12N14 - b.

In the same case of the number of slots(N), the number of poles (P) is proportional to the torque, the greater the number, the greater the torque.

c.

Under normal circumstances, the slot number (N) and pole number (P) increases, the sense of frustration (the smaller motor will feel a sense of resistant frustration when the motor is not charged with the hand rotating motor), the theory of motor vibration will be less, but because the slots are hard to do active balance.

3 - KV The KV value of the brushless motor is defined as the speed / V, which means that the input voltage is increased by 1 volts (V), the rotational speed (turn / minute) of the brushless motor is increased.

From this definition, voltage and motor idling speed follow a strict linear proportional relationship and are constants, regardless of the relationship between the motor's working voltage, voltage and speed.

Below samples and drawing are needed for machine manufacturing and commissioning, 1 - Stator stack 5pcs without winding 2 - Wound stator 1pc 3 - Copper wire 1 roll enough for winding 10pcs stators 4 - Stator lamination drawing and winding drawing Please click below picture to view video [] Contact: Shanghai Wind Automation Equipment Co., Ltd Email: [emily@motor-machinery.
