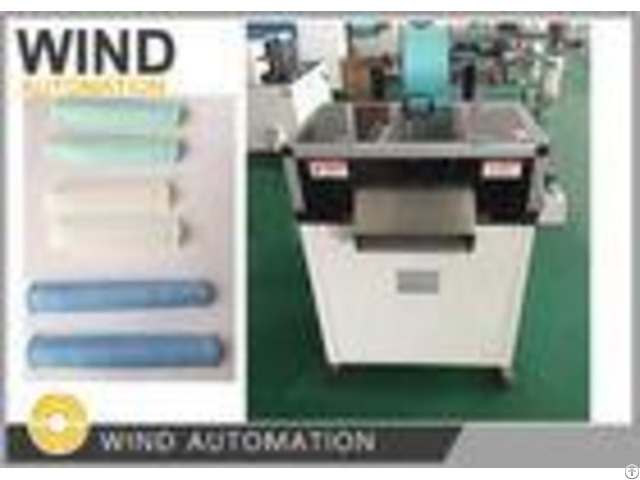

150mm Width Slot Cell Insulation Forming Cuffing Creasing And Cutting Machine - China

150mm Width Slot Cell Insulation Forming Cuffing Creasing And Cutting Machine Application: Pump, compressor, hood electric, vending machines, wheelchairs, medical beds, and treadmills induction motors stators islation bending and cutting Alsocut insulation without bending for slotless motor as a isolation cutter Advantages: 1 - Simple and easy to operate 2 - Wide applied for bending and cutting different slot cell size without tooling change 3 - No maintenance needed, only polish or replace cutter after 2 year to 5 years usage Parameter: Feeding length 10~100mm Cutting width <150mm Cutting thickness < 0.35mm Edge folded width 2.5mm~4mm Weight: around 150KGS Dimension: 500*900*1200mm For WIND-IF insulation paper froming machine the feeding length is related to slot size total area length, cutting width is usually stator stack length+ edge folded length *4, for a motor frame size below 132, the edge folded usually is around 3.5mm For example, if stack length is 80mm, the cutting width is around 80+14 = 94mm, Question and Answer 1 - Is it difficult to increase the "feeding length" from 100 mm to 200 mm for example? 1 - For standard machine the feeding length must be less than 100mm, and we checked your stator lamination which you sent on Jan.

6th, 2016, they are in the range, 2 - Only to cut the insulation without edge folding is easy to set on machine, You only need to ease the folding area by mechanical adjustment, In the video [https: //vimeo.

com/125517280] from 02: 09 ~02: 25 is the mechanical adjustment process, - - - - Other type available | Video | Insulation cutter | [https: //vimeo.

com/125517280] | | [https: //vimeo.

com/108431442] | | [https: //vimeo.

com/106469912] | | | - - - - Please click below picture to view video Photo: Contact: Shanghai Wind Automation Equipment Co., Ltd Email: emily@motor-machinery.

com Skype: motor.

machinery Mobile: +86-17721374887
