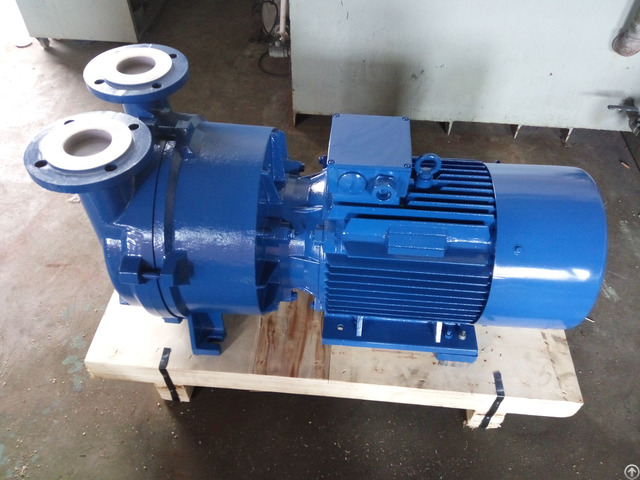

2bv2 070 Water Ring Vacuum Pump - China

2BV series products possess the characteristics as bellow

The close-coupled design is convenient to install and can save space.

2BV series products have the cavitation protection port.

When they work under the condition near the limited vacuum, the cavitation protect port opens (or connects with the separator) to get rid of the screaming to protect the pump.

Aluminum bronze impeller is of high intensity and wearing well.

The erosive-proof capacity of the pump can be improved by using it.

If the parts where the liquid flows are made of the stainless steel, the pumps can be used under the more rigorous condition.

The unique design of the discharge port can protect the pump from the over-pressure to ensure the best efficient performance in the working range of the pump.

The motors are all adopted Y2 series products.

The protection class is IP54 or IP55 (normal is IP44) and the insulation grade is F.

The bearings are all used the imported products with brand name of NTN or NSK

The standard seals are all used the John Crane mechanical seals.

Its suction pressure can reach 33mbar (abs) (i.e. 97 % vacuum degree).

If the transformer oil is used as the operating liquid, these pumps are called oil ring vacuum pump and the suction pressure can reach 6.7mbar (abs) (i.e. 99 % vacuum degree).

So the oil ring vacuum pumps can replace the reciprocated vacuum pumps completely.

When the liquid ring vacuum pumps work under the condition near the limited vacuum for a long time, it is necessary to couple with the cavitation protection pipe in order to get rid of the screaming and protect the pump.

When the compressor is working, the maximum pressure is 0.26MPa (abs).
