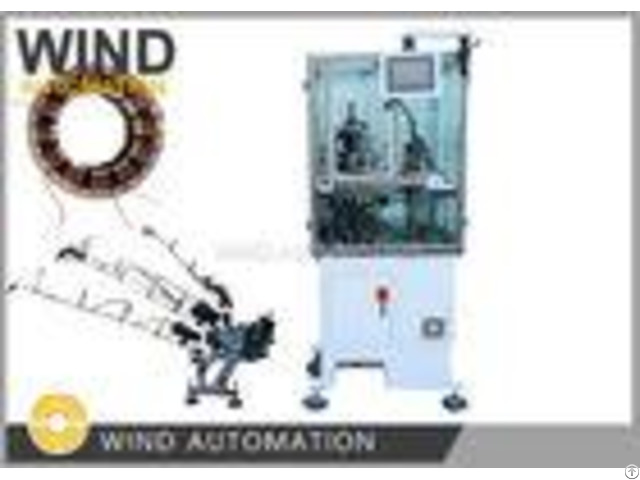

Cam Design 3 Needles 400PRM Fast Inslot BLDC Motor Stator Needle Winding Machine WIND-3-TSM Application: Needle winding BLDC stators of Air conditioning compressor, Refrigerator compressor, water pump automotive application, fuel pump motor with 6poles, 9 poles, 12 poles or 18poles Advantages: 1 - Wind 3 slots per time, fast 2 - One station without Synchronization issue 3 - Widely used inBLDC stator with kinds of wire size, especially suitable for thick wire diameter around 0.8mm (AWG20) 4 - Achieve good feedback and repeated order from customers Feature: Brushless motor stator winding machine WIND-3-TSM is designed to produce multi poles stator.

Its winding track is in square shape, needle moves only vertically, stators are placed on rotating tool for indexing, stator is stationary during the winding Winding machine does wires arraying and winding at same time automatically.

It is the best sold needle winding machine during our stator winders Parameter: Wire diameter: 0.08~1.2mm (AWG17~AWG39) Stator ID: 15~65mm Core length: 7-110mm Turns No.

0-99999 Operation option: stepping/Auto Stator poles: 6 poles, 9 poles, 12 poles, 18poles (Customized) Air pressure: 5~7kg/square centi-meter Power: 2KW, AC220V 50/60Hz Weight: about 450kgs Dimension: 1600(L)x1100(W)x1400(H)mm - - - - Parts list WIND-3A-TSM | | | Name | Spec.

| Q'ty | | Parts | | | | | 1 | Spindle belt | HTD8M-776 | 1pc | | 2 | Arraying belt | HTD8M-624 | 1pc | | 3 | Belt | HTD5M-825 | 1pc | | 4 | Fuse | RT18-32 2A | 2pcs | | 5 | Fuse | RT18-32 10A | 2pcs | | 6 | Magnetic switch | AL-11RL-02 | 1pc | | 8 | Ceramic wheel | 4 | 1pc | | | | | | | Tools: | | | | | 1 | Allen wrench | 8pcs | 1Set | | 2 | Open end wrench | 13-16mm | 1pc | | 3 | Word screwdriver | 4inches | 1pc | | 4 | Phillips screwdriver | 4inches | 1pc | | 5 | Wrench | 8pcs | 1Set | | 6 | Tool box | | 1pc | | 7 | Diagonal pliers | | 1pc | | | | | | | | | | | | Custom part | | | | | 1 | Nozzle | | 1pc | | - - - - - - - - Needles | 3 needles wind at same time, can finish the winding 2 times for 6poles BLDC stator | Winding diagram | 3 phase BLDC motor with same winding way for each phase | Motor applciation | Air conditioning compressor, Refrigerator compressor, water pump automotive application, fuel pump | - - - - Winding turns number is related to the motor output current and torque.

The smaller turns number of motor stator, the higher the KV value, the lower the rated voltage, and the higher the rated current.

Winding turns number is the slot filling rate of a BLDC stator, in theroy, the stator with skew slot can obtain more copper wire turns and bigger torque, and for WIND-TSM series BLDC stator needle winding machine, it is dedicated to wind straight stack brushless DC motor stator due to the needle movement trace.
