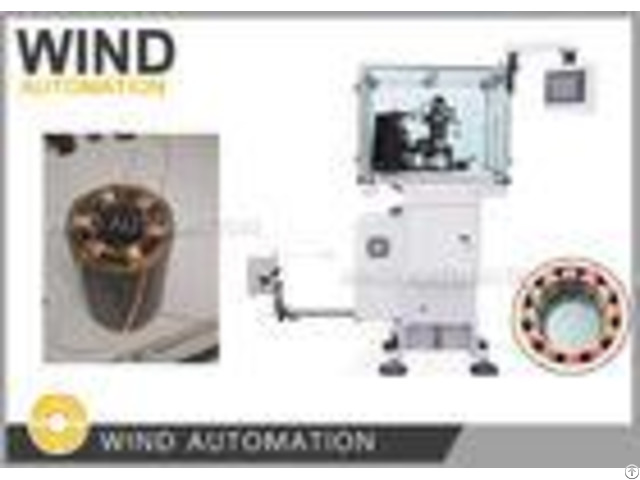

BLDC Motor Stator Needle Winding Machine With Tooth Coil Tap Wire WIND-2-TSM Application: Tooth winding machine WIND-2-TSM produce [Muti poles BLDC Stator winder needle winding ]for Stator with 6 poles, 8poles, 9 poles, 10poles, 12 poles, 14poles, 18 poles (Tailor made, Customized) All types of BLDC motor, stepping motor, fan motor stator can be wound by WIND-2-TSM series with different kind of winding method with arraying, with bridge wire placement, wire tapping covering stator with different winding way.

Advantages: 1 - Wide application for all type of BLDC stators with small and big size, heavy or light weight, Big or small wire size, arraying or no wire displacement needed, wire tapping or no taping 2 - Wide wire gaugerange from 0.08~1.2mm (AWG17~AWG39) 3 - Delta PLC, Delta servo systemHuman-machine Interference and rich experience in 6, 8, 9, 12 tooth can ensure the good performance of winding machine Parameter: Wire diameter: 0.08 to 1.2mm Stator ID: above 19mm Stack height: 7 to 90mm Air pressure: 5~7kg/square centi-meter Power: AC380V 50/60Hz Weight: about 500kgs Dimension: 1800(L)x1150(W)x1600(H)mm The automatic brushless stator winding machine series WIND-TSM is suitable for the winding of various types of brushless motor coils.

The enameled wire is directly wound on the coil core.

Compared with the traditional method of stator coil winding and windingsembedding method, it saves the cost of the enameled wire and increases the number of coils (related to electric motor slot filling rate).

The magnetic flux increases the power of the motor.

This machine WIND-TSM series can automatically complete the winding, indexing, arraying, cutting and other processes.

The operator only needs to take the work of picking and placing the stator, which reduces the labor intensity of the operator and achieves automation.

In addition, the machine has a significant functional feature.

The copper wire nozzles are moving according to the setting parameter, so that the wound wire package is compact, neat, excellent laying and nice looking.

- - - - Parts list of WIND-2-TSM | | Name | Spec.

| Q'ty | Parts | | | | 1 | Spindle belt | HTD8M-776 | 1pc | 2 | Arraying belt | HTD8M-624 | 1pc | 3 | Indexing Belt | 224XL | 1pc | 4 | Fuse | RT18-32 2A | 2pcs | 5 | Fuse | RT18-32 10A | 2pcs | 6 | Magnetic switch | AL-11RL-02 | 1pc | 8 | Ceramic wheel | 4 | 2pcs | | | | | Tools: | | | | 1 | Allen wrench | 8pcs | 1Set | 2 | Open end wrench | 13-16mm | 1pc | 3 | Word screwdriver | 1.5 inches | 1pc | 4 | Phillips screwdriver | 4inches | 1pc | 5 | Wrench | 8pcs | 1Set | 6 | Tool box | | 1pc | 7 | Diagonal pliers | | 1pc | | | | | | | | | Custom part | | | | 1 | Nozzle | | 1pc | - - - - Please click below picture to view video Contact: Shanghai Wind Automation Equipment Co., Ltd Email: emily@motor-machinery.
