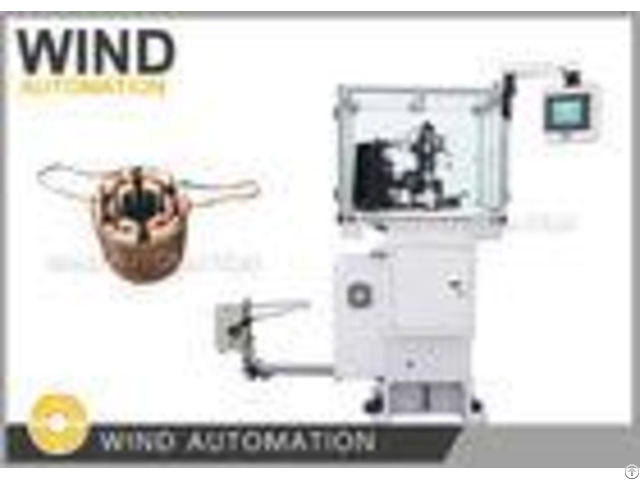

Brushless Motor Inslot Stator Coil Needle Winding And Tapping Machine - China

price: check with company for price

Brushless Motor Inslot Stator Coil Needle Winding and Tapping Machine WIND-2-TSM Application: Inslot Stator such as fan motor, washing machine motor, compressor motor, stepper motor which requires winding and tapping Advantages: 1 - Delta PLC, Delta Servo System, 2 - Easy Operation with Human-Machine interference 3 - Rich experiencein 6, 8, 9, 12 tooth can ensure the good performance of winding machine and handled types of 6 tooth poles stator which need tapping Parameter: Wire diameter: 0.08 to 1.2mm Stator ID: above 19mm Stack height: 7 to 90mm Air pressure: 5~7kg/square centi-meter Power: AC380V 50/60Hz Weight: about 500kgs Dimension: 1800(L)x1150(W)x1600(H)mm Winding Cycye Time example: - - - - 1 - BLDC motor for elevator door12 poles stator diameter inside 64.5 mm, outside 105 mm and 320 spire every poles | It cost around 9 to 10 minutes per piece | 2 - For BLDC Motor6 poles coils winding data 435 turns per coil, wire 34 swg(0.234mm), total weight of 6 coil-90grms | It takes around 7minutes/pc That is stator output quantity70pcs/8 hours | - - - - Please click below picture to view video [] Contact: Shanghai Wind Automation Equipment Co., Ltd Email: [emily@motor-machinery.

co m ] Skype: motor.

machinery Mobile: +86-17721374887


Company Contact:


  • Phone: 86-21-58992293

  • Address: No.4 Building , No.388, Kongjiang Road,Yangpu District,200093,Shanghai, China, Shanghai , Shanghai , China

  • Email: Email


Published date: April 24, 2018

  • Business Description: Shanghai Wind Automation Equipment Co., Ltd supply motor automation solution for global motor manufacturers.

    Through continuous innovation and participating in globalization, it has developed into a large enterprise that integrates R&D, production and sales to provide motor solutions for customers.
