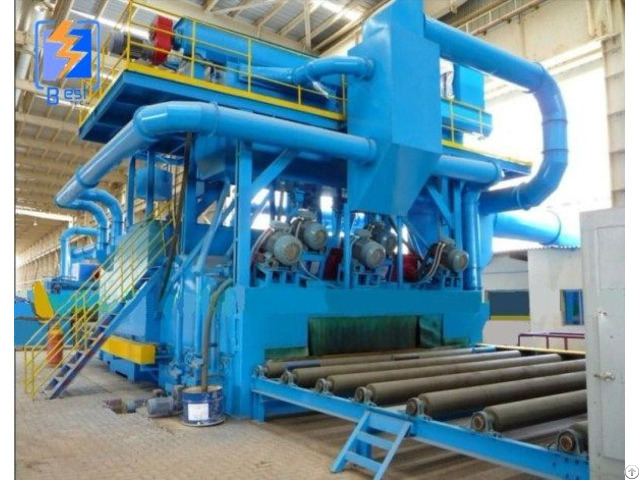

Conveyor Type Steel Structure Shot Blasting Machine - China
price: 10000.00 Dollar US$
Working principle Sot blasting machine, in the cleaning process, the adjustable speed conveyor roller is controlled by the electric, it will transport the steel workpieces or steel projectile body to the blasting area of cleaning machine room, its whole body on each side is hit and friction by the strong intensive projectile from different coordinate orientation, so that the oxide scale, rust and dirt on the rapidly falling, get some roughness and smooth steel surface, on both sides of the exits and entrances of outdoor, roller loadand unload the workpieces.
Projectiles falled above the steel and dust and rust is purged by the venting device, scattered down the pill dust mixture is transported by screw conveyor into the chamber funnel, vertical and horizontal screw conveyor brings together below the lelevator, then rise to separater on the upper part, purity projectile after separation drops in the separator hopper for recycling shot blasting.
the dust produced during the shot blast cleaning is sent to the dust removal system by the exhaust pipe, treated air is discharge to atmosphere, the granular dust is collected .
Company Contact:
- Posted By: qingdao bestech machinery.,ltd
- Phone: +8613780658121
- Address: shuangzhu road , qingdao , shandong , China
- Email:
- Website: http://www.Besttechmachinery.com
Published date: November 23, 2018
- Business Description: our factory is specified in foundry machinery .
as sand molding machine , sand mixing machie , shot blasting machine .
dust collecting machine etc.
