Dc Motor Armature Double Cutter Commutator Surface Turning Lathe Machine - China

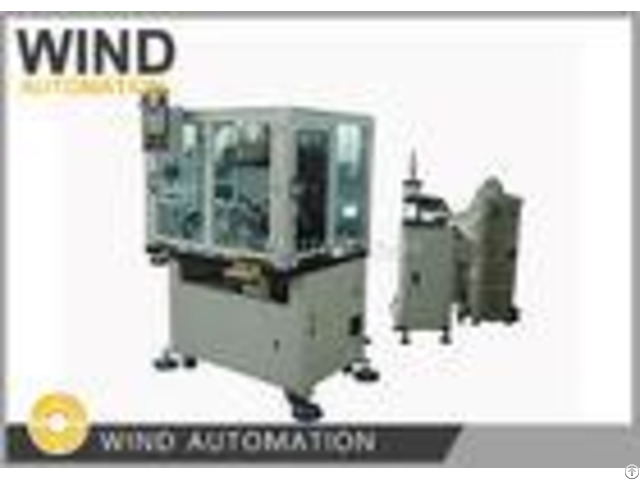

DC Motor Armature Double Cutter Commutator Surface Turning Lathe MachineWIND-3A-PL Application: PMDC motor armature commutator, mixer, vacuum clearner, power tool, automobile armature Turning and milling the surface of commutator to let it polish and shining, commutator turning and burr remover can help the commutator work well with carbon brush.

- - - - How many axis in turning machine? | Three axis turning with three servo system | The smallest armature handled | Lamination OD 22.7mm(0.89inch), shaft diameter 3.0mm Commutator OD 7.0mm | Lathe cutter piece | One piece or two pieces options (in different turning direction) | - - - - Advantages: 1 - Precise with three axis servo device control 2 - Two cutter type can set different direction turning at same time for high requirement commutator surface turning 3 - Acquire better commutator roundness and shining suface which can works well with carbon brush to reduce spark and noise Specification: Commutator roundness: 0.005mm (depends on users commutator material, armature shaft quality and bearing position quality) Roughness: Ra 0.4(depends on customers armature quality) Armature OD: 20~82mm Shaft length: 32~250mm Shaft OD: 3~16mm Commutator OD: 8~40mm Max.

cutting volume: first cutrough cutting Max 0.15mm(in diameter direction of commutator) Speed regulation range: 0~60Hz Z direction cutter feeding speed: settable on touch screen, stepless adjustable Z direction cutter returning speed: set on program X direction cutter feeding speed: settable on touch screen, stepless adjustable X direction cutter returning speed: set on program Z direction cutting length: settable on touch screen, Max.

could set 4times different cutting length(Max 30mm) Z direction travelling: Max 50mm Production efficiency: whole cycle12sec/pc(twice cutting) Air pressure: 4~6kg/cm2 Fixture: diamond V shape journal Total power: 2.2KW Machine power: 50/60Hz AC230V10%(single phase) Burring removing machine power: 50/60Hz AC230V10%(single phase) Vacuum cleaner power: 50/60Hz AC380V10%(three phase) Weight: about 1, 100Kg Machine dimension: 1, 100mm x 1100 mm x 1, 830mm3 Surface turning machine: Turning of the commutator brush track area is accomplished through the use of a diamond-tipped tool mounted onto a precision machine slide driven by a Japanese famous brand Mitubishi A.C. servo motor, Turning and milling the surface of commutator to let it polish and shining, Photo: Contact: Shanghai Wind Automation Equipment Co., Ltd Email: emily@motor-machinery.
