E Bike Wheel Coil Winding Machine For Brushless 12 24 36 Poles Hub Motors - China

price: check with company for price

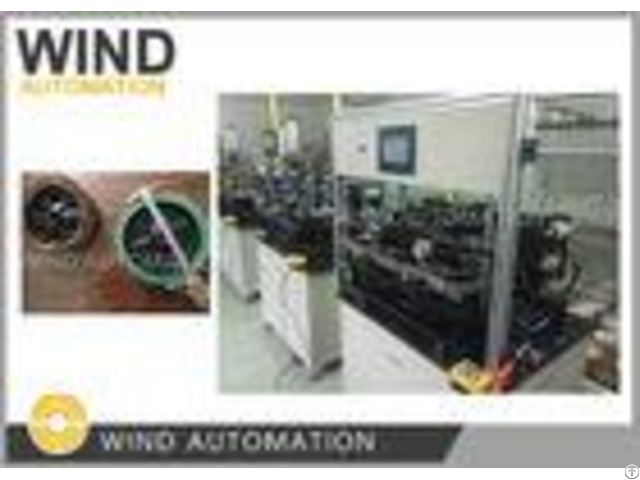

E-Bike In Wheel Coil Winding Machine For Brushless 12, 24, 36poles Hub Motors WIND-HMW-2 Double station E-bike PMDC wheel motor winding Brushless hub motor stator winder muti coils winding machine wind the 15pcs parallel wires up to 0.51mm, with 6, 8, 10, 12, 14, 15 parallel wires for different voltage motor such as 24, 36, 48, 62V Application: Electric bike, PMDC wheel motor, hub motor, wheel motor, outrunner motor Advantages: - - - - Fully automatic stator winding | winding, indexing, winding parallel wires with efficiency | Muti wires winding | Winding device with tension fram can ensure parallel wires winding avoid from twisting | Special design Tooling | Precise Tooling ensure the winding quality and can be changed easily for types stators | - - - - - - - - Max Wire handled | 0.51mm (AWG24) | - - - - Technical Data: Stator OD: 40-265mm Core length: 6-75mm Slots Number: max 63 Max wires numbers winding at one time: 15 pieces (Usually 6, 8, 10, 12, 14, 15 bunch wires) Cycle Time for stator winding: 54 slots, 11 pieces wire for one time winding, including loading/unloading, it takes 7 minutes for 2 pieces stator Around 130pcs/ shift (8hours) Main Configuration: PLC: DELTA Winding servo motor: MITSUBISHI Indexing servo motor: MITSUBISHI Wire arraying servo motor: MITSUBISHI HMI: DELTA Buttons: SCHNEIDER Ask and Answer: 1 - How the motor wheel winding machine do the indexing: manually or automatically? Automatically indexing by Mitsubishi servo motor 2 - How the E-bike motor stator is fixed during winding process? By pneumatic device 3 - What range of diameters of copper wire can work your machine (minimum and maximum)? What the muti coils winding machine had done is 0.51mm with 6, 8, 10, 12, 14, 15 parallel wires 4 - Which is the range of stacking lengths the winding machine can work? Stator Stacking length 6 to 75mm 5 - Is it possible to press and compact the wire copper during or after winding? The winding heads protrude maximum 15mm from both sides of the stack.

The Hub motor winding machine machine WIND-HMW only winding, no function to press and compact, and as machine wind compactly, the winding heads protrude maximum 15mm from both sides of the stack can be assured 6 - Does the machine any limitation in the dimension of the width of the open slot Yes, 2mm is absolutely OK to wind in our machine WIND-HWM 7 - How many samples would you need to adjust the winding machine in your facilities? Around 4pcs to 5pcs stator samples 8 - What is the height of the machine on the work area of the operator? Height 750mm 9 - Have you manufactured any machine for a similar stator? Yes, we had supplied 12pcs winding machine working in this [E-bike motor manufacturer] 10 - How is the setting process to change the number of turns per coil? Please set the number of turns parameter on touch screen 11 - How is the stator fixed to the machine during the winding process? Is it possible to have different lengthsand different shapes of the motor wheel shaft Stator is fixed on machine by penumatic device during winding, If different shape of motor, toolings can be changed in 1hour If only different stack lengths, mechanical adjustment is easy Please click below picture to view video []


Company Contact:


  • Phone: 86-21-58992293

  • Address: No.4 Building , No.388, Kongjiang Road,Yangpu District,200093,Shanghai, China, Shanghai , Shanghai , China

  • Email: Email


Published date: April 24, 2018

  • Business Description: Shanghai Wind Automation Equipment Co., Ltd supply motor automation solution for global motor manufacturers.

    Through continuous innovation and participating in globalization, it has developed into a large enterprise that integrates R&D, production and sales to provide motor solutions for customers.
