Eight Poles BLDC Stepping Motor Stator Winding Machine

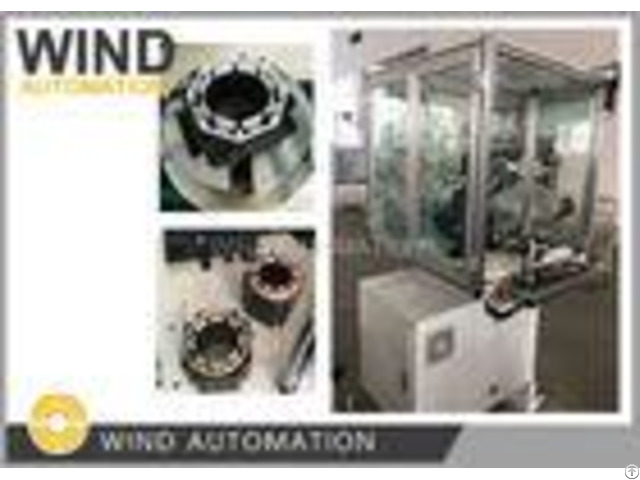

TwoNeedles Wind Slots Winding At Same Time WIND-1B-TSM Application:

Stepper motor needle winding machine WIND-1B-TSM can wind 2 slots once, covering6poles, 8poles, 9poles, 10poles, 12poles, 14poles, 18poles Advantages:

Fast and flexible, Stepping motor stator needle winding with 2 slots winding each time

2 Nozzles winding works as a two station BLDC stator winder and stable than 2 station winder machine Parameter:

Wire diameter: 0.08~0.8mm

Stator ID: 15mm~65mm

Stack height: 7-100mm

Turns No.

0-9999

Operation option: stepping/Auto

Stator poles: 6 poles, 8 poles, 9poles, 10poles, 12 poles, 14pole, 18poles (Custom made)

Air pressure: 0.5~0.7MPa

Power: 1KW, Single Phase, AC220V 50/60Hz

Weight: about 450kgs Dimension: 1600(L)x1000(W)x1500(H)mm Configuration:

Mitsubishi PLC

Embedded human - machine interface touch screen

High power stepper motor

Airtac cylinder - - - -

Stator winding machine characteristics type 1:

Plz, indicate the model __WIND-1B-TSM | Confirmation: yes/no.

If NO, plz indicate your parameter | 1 | Stator tube diameter | 70 mm | YES | 2 | Stator tube width | 15 mm | YES | 3 | Number of axies | 4 minimum | NO | 4 | Line coordinates tolerance | 0, 01 mm | YES | 5 | Angular coordinate tolerance | 0, 5 angular minute | YES | 6 | Shaft pitch | minimum 100 mm | YES | 7 | Winding speed | 10 60 winds prm | YES, 350~400RPM | 8 | Stator max.

Outer diameter | 63 mm | YES | 9 | Stator Inner diameter | no limits | >15mm | 10 | Maximum length of the stator with the front parts | 80 mm minimum | YES | 11 | Minimum length of the stator with the front parts | 15 mm | YES | 12 | Stator slots | no limits | NO, 6, 8, 9, 10, 12, 14, 18slots | 13 | Minimum slot width | 0, 8 mm | YES | 14 | Working wire diameter | 0, 063 0, 315 mm (twin) | YES | 15 | Number of spindles | 2 | No, 2 nozzles, 1 spindle | 16 | Number of tensioners | 2 | YES | 17 | Control mode | Laptop with Software | NO, PLC and HMI | 18 | Power supply | 3~380 V (15%), 50 Hz, 2 kW | NO, 1~220V, 50Hz, 1.5KW | - - - - Question and Answer:

1 - Which type of stator needle winding shall we select for our stator? The stator needle winding machine WIND-1B-TSM is very suitable forwinding stepper motor with 8poles Machine Winding, Indexing and Cutting automatically without arraying for slot filling rate not high stator The winding machine WIND-1B-TSM with winding not arrraying automatic indexingdevice and angle swing cam device is very suitable for windingbig and small wire, heave or light BLDC motorstators, 2 - How is the training to operate the stator winding machine? For machine tranining, usually you send one engineer people to our plant to inspect before delivery, WIND-1B-TSM is not a complicated machine, if your engineer have experience then you don't need to come and we can take some vidoes for you to operate 3 - Is the machine from you is switched on and put into operation? Yes, machine is switched on from machine side for power on machine and Start, Emergency button, Auto/Step swith to operate machine 4 - I have not wound stator.

Why do you need for wound stator? The wound stator can show Shanghai Wind Automation the winding diagram which include winding way, bridge wire, terminal wire, If you don't have wound stator, please provide winding drawing, Below samples and drawing are needed for machine manufacturing and commissioning, 1 - Stator stack 5pcs without winding with insulation cap or isolation paper

2 - Wound stator 1pc

3 - Copper wire 1 roll enough for winding 10pcs stators 4 - Stator lamination drawing and winding drawing Stepper motors divide a full rotation of the rotor into a number of equally sized steps, offering the ability to quickly position a load and hold it at any one of these steps.

Also known as step motors or stepping motors, these brushless DC motors offer quick, precise positioning and exceptional holding torque.

Stepping technology allows for the use of an open-loop controller simplifying machine design and lowering total cost compared to a servo motor system, it ishigh-performance, brushless, maintenance-free stepper motors provide precise, extremely cost-effective motion control.

You produce the stepper motor, Wind Automation supply the motor manufacturing machines Please click below picture to view video
