Fast Stator Needle Winding Machine 300rpm To 500prm For In Slot Bldc Motor - China

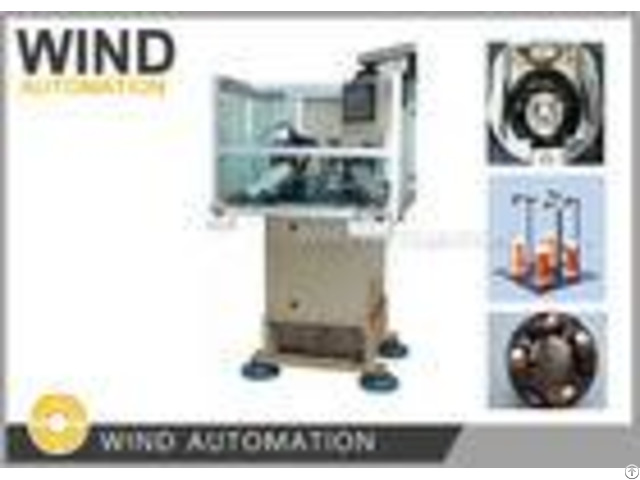

300RPM To 500PRM Fast Stator Needle Winding Machine For In-slot BLDC Motor Application: Needle winding BLDC stators of 4poles - - - - Automatic stator needle winding machine application | Four poles shaded motor stator winding | Nozzle 4pcs | 4poles wind at same time at 400rmp | 4ploles stator needle winding | Dedicated machine for 4poles shaded motor stator winding | - - - - Advantages: 1 - Wind 4 slots per time, fast 2 - Automatic winding, automatic cutting four poles per time Feature: 4 Sets automatic clamp and cut wire device, wind shaded pole motor 4slots at same time, and cut wires automatically Parameter: Wire diameter: 0.08~1.00mm Stator ID: 15~65mm Core length: 7-90mm Turns No.

0-99999 Operation option: stepping, Auto Stator poles: 4poles Air pressure: 5~7kg/square centi-meter Power: 2KW, AC220V 50/60Hz Dimension: 1550*900*1450mm Weight: about 450kgs Winder Major Parts: Big power Stepper motor Mitsubishi PLC Embedded human - machine interface AIRTAC cylinder Suggestion: Accordingly to stator winding way, different types of needle winding machine can have one, two, three, four needles For 4 poles stator, we usually suggest customer with 4needles winding machine WIND-1A-TSM, it can get the stator fast even there will be 4pcs begining wire and 4pcs ending wire needed to be connected, The needle is driven by cam device rotation which drive the winding spindle, The machine WIND-1A-TSM major electrical parts such as Mitsubishi PLC, Embedded human - machine interface, Airtac cylinder and so on have CE mark, and we exported to Europe company such as France, Romania and so on, May I know the reason that you'd prefer 1 needle or 2 needes, is it because of the bridge wire showed on photo? Basic machine type WIND-1-TSM with 1 needle is for production of prototypes of stators with small quantity, It can wind the slot one by one, and you may need to put the bridge wire by hand if you use the type WIND-1-TSM as your stator insulation cap interfre the machine place bridge wire automatically, The poles of shaded pole induction motor consist of 4 slots, which are cut across the laminations.

The smaller part of the slotted pole is short-circuited with the help of a coil.

[The coils are made up of copper wire] and it is highly inductive in nature.

This coil is known as shading coil.

The part of the pole which has the coil is called the shaded part and the other part of the pole is called unshaded part.

Motor winding machine manufacturer sample needed 1 - Stator stack samples each 5pcs 2 - Copper wire gauge each 1roll 3 - Stator lamination drawing and winding drawing Please click below picture to view video [] Contact: Shanghai Wind Automation Equipment Co., Ltd Email: [emily@motor-machinery.

co m ] Skype: motor.

machinery Mobile: +86-17721374887
