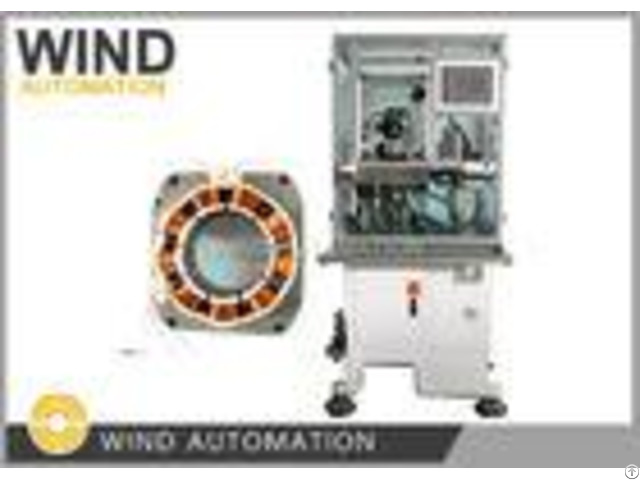

Muti Poles BLDC Motor Stator Needle Winding Machine Fast Than Three HeadWinder WIND-3A-TSM Application: Needle winding BLDC stators of Sewing Machine, Air conditioning compressor, Refrigerator compressor, water pump automotive application, fuel pump motor with 6poles, 9 poles, 12 poles or 18poles Advantages: - - - - Fast as three head winding machine | 3 needles wind 3slots at same time, wider can finish the winding in3 times for 9poles BLDC stator | Winding Range | 3 phase BLDC motor with same winding way for each phase, Especially suitable forthick wire diameter around 0.8mm (AWG20) | Motor Applciation | Sewing Machine, Air conditioning compressor, Refrigerator compressor, water pump automotive application, fuel pump | - - - - Feature: Brushless motor stator winding machine WIND-3A-TSM is designed to produce multi poles 3phase stator Its winding track is in square shape, It does wires winding and arraying at same time and automatically.

The slots needle winding, arraying, indexing, place bridge wire, cut wires are fully automatically.

Parameter: Wire diameter: 0.08~1.2mm (AWG17~AWG39) Stator ID: 15~65mm Core length: 7-110mm Turns No.

0-99999 Operation option: stepping/Auto Stator poles: 6 poles, 9 poles, 12 poles, 18poles (Customized) Air pressure: 5~7kg/square centi-meter Power: 2KW, AC220V 50/60Hz Weight: about 450kgs Dimension: 1600(L)x1100(W)x1400(H)mm Question and Answer: 1 - Which type of stator needle winding shall we select for our stator in attached drawing? The winding machine WIND-3A-TSM with winding arrraying indexing servo device and angle swing cam device is very suitable for winding your stator metioned in drawing, it is very stable in winding big and small wire, heave or light BLDC motor compressor stators, 2 - Can you also estimate the winding period of our design, how many stators can we produce in one hour? Per your winding data Number of turns 27, wire diameter 0.8mm, the winding speed we suggest is300RPM, and it take about 1mintutes to get 1pc wound stator, In one hour you can get more than 60pcs 3 - What's the material list we shall provide for machine trail? Below samples are needed for machine manufacturing and commissioning, 1 - Stator stack 5pcs without winding 2 - Wound stator 1pc 3 - Copper wire 1 roll enough for winding 15pcs stators Please click below picture to view video [] BLDC Motoris widely used in everyday appliances, automotive industry, aerospace, consumer electronics, medical electronics, industrial automation and other devices and instruments.

As the name implies, BLDC uses electronic commutators directly without using a commutator brush with a mechanical structure.

BLDC has many advantages over brushed motors, such as: 1 - Can obtain better torque speed characteristics 2 - High-speed dynamic response 3 - High efficiency 4 - Long lifetime 5 - Low noise 6 - High speed.

In addition, BLDC's superior torque and form factor make it more suitable for applications where the motor itself have requirement onweight and size.
