Muti Poles Stator Teeth Needle Winding Machine for Brushless Stepping DC Motor WIND-1B-TSM Application: WIND-1B-TSM is a simpleneedle winding mchine for mass production stator manufacturing, Covering6poles, 8poles, 9poles, 10poles, 12poles, 14poles, 18poles, such as SteppingMotor, Brushless DC Motor Muti Poles Stator During which 8 poles stepper motor can be wound 4times by 2 needles wind 2 slots per time.

Advantages: 1 - Easy to operate, very suitable for types of stators pilot run, laboratory use 2 - For some 8poles stator with dedicated winding diagram, two needles can be applied to wind 2 slots per time 3 - Change tooling and adjustment is simple, 4 - Have a wide application of big and small, heave and light, thin and thick wire brushless stators Which don't have a high slot filling rate and no wire displacement arraying needed Winder Techanical Specification: Wire diameter: 0.08~0.8mm Stator ID: 15mm~65mm Stack height: 7-100mm Turns No.

0-9999 Operation option: stepping/Auto Stator poles: 6 poles, 8 poles, 9poles, 10poles, 12 poles, 14pole, 18poles (Custom made) Air pressure: 0.5~0.7MPa Power: 1KW, AC220V 50/60Hz Weight: about 450kgs Dimension: 1600(L)x1000(W)x1500(H)mm Question and Answer: 1 - Which type of stator needle winding shall we select for our stator? The machine WIND-1-TSM is widely used for 6 poles, 8 poles, 9pole, 10poles, 12poles, 14poles and 18poles Stepper motor and BLDC motor with Single phase or three phase Machine Winding, Indexing and Cutting automatically without arraying for slot filling rate not high stator The winding machine WIND-1-TSM with winding not arrraying automatic indexingdevice and angle swing cam device is very suitable for windingbig and small wire, heave or light BLDC motorstators, 2 - How is the training to operate the stator winding machine? For machine tranining, usually you send one engineer people to our plant to inspect before delivery, WIND-1-TSM is not a complicated machine, if your engineer have experience then you don't need to come and we can take some vidoes for you to operate 3 - Is the machine from you is switched on and put into operation? Yes, machine is switched on from machine side for power on machine and Start, Emergency button, Auto/Step swith to operate machine 4 - I have not wound stator.

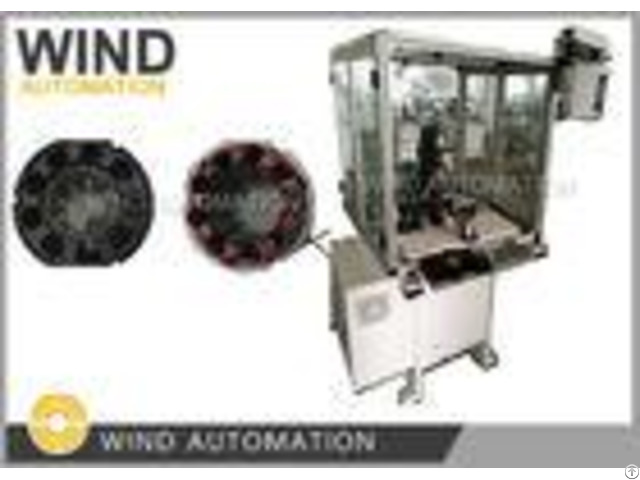

Why do you need for wound stator? The wound stator can show Shanghai Wind Automation the winding diagram which include winding way, bridge wire, terminal wire, If you don't have wound stator, please provide winding drawing, Below samples and drawing are needed for machine manufacturing and commissioning, 1 - Stator stack 5pcs without winding with insulation cap or isolation paper 2 - Wound stator 1pc 3 - Copper wire 1 roll enough for winding 10pcs stators 4 - Stator lamination drawing and winding drawing Below is a9 teeth stator picture wound by stator winding machine WIND-1B-TSM Contact: Shanghai Wind Automation Equipment Co., Ltd Email: emily@motor-machinery.
