Stator Coil Winding Machine Shaded Four Poles Segmented Motor Wind 1a Tsm - China

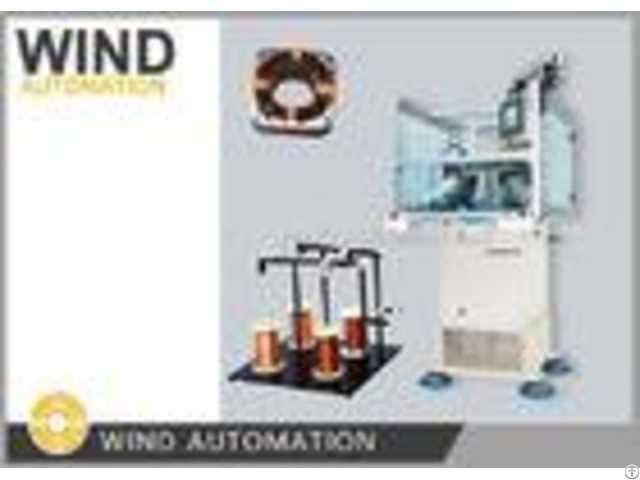

Shaded Four Poles Segmented Motor Stator Coil Needle Winding Machine Application: Dedicated machine for 4poles shaded motor stator winding, a.

4pcs Needles wind 4slots at same time, the 4poles segmented motor are usuallyshaded pole motor b.

4 Sets automatic clamp and cut wire device ensure the automated process and efficiency c.

It cost about 2 minutes to get 1pc wound stator Advantages: 1 - Wind 4 slots per time, fast 2 - Automatic winding, automatic cutting four poles per time - - - - Automatic stator needle winding machine application | Four poles shaded motor stator winding | Winding Nozzle 4pcs | 4poles wind at same time at 400rmp | 4ploles stator needle winding | Dedicated machine for 4poles shaded motor stator winding | - - - - Feature: 4 Sets automatic clamp and cut wire device, wind shaded pole motor 4slots at same time, and cut wires automatically Stator Winder Configuration: Big power Stepper motor Mitsubishi PLC Embedded human - machine interface AIRTAC cylinder Parameter: Wire diameter: 0.08~1.00mm Stator ID: 15~65mm Core length: 7-90mm Turns No.

0-99999 Operation option: stepping, Auto Stator poles: 4poles Air pressure: 5~7kg/square centi-meter Power: 2KW, AC220V 50/60Hz Dimension: 1550*900*1450mm Weight: about 450kgs Motor winding machine manufacturer sample needed 1 - Stator stack samples each 5pcs 2 - Copper wire gauge each 1roll 3 - Stator lamination drawing and winding drawing Please click below picture to view video [] Contact: Shanghai Wind Automation Equipment Co., Ltd Email: emily@motor-machinery.

com Skype: motor.

machinery Mobile: +86-17721374887
