1000l Brewery Fermentation Tank - China

price: 3600.00 Dollar US$

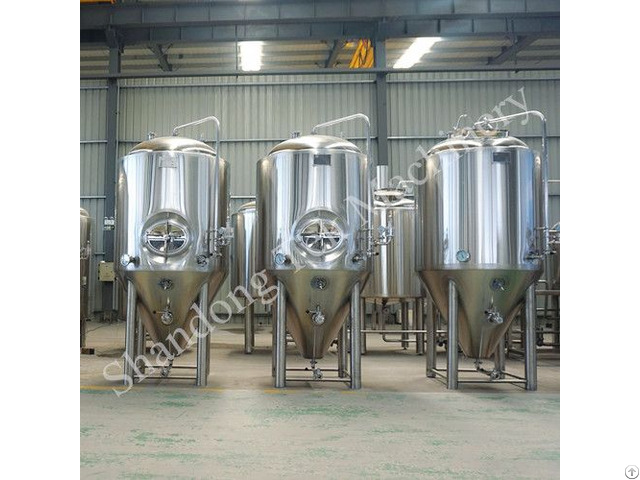

1000l Brewery Fermentation Tank

Products Photos Catalog 1000l Brewery Photos Catalog

TEKBREW Beer Fermentation Tank 1 - Tek Fermenting equipment is widely used for Homebrew, Bar, Brewpub, Restaurant, Microbrewery and small Craft Beer Brewing company, Capacity from 50L to 200HL.

Type: Single layer, Cooling jacketed, Insulated double layer, Open top fermenter 2 - The fermentation tank is complete new, unused and high quality configurations.

3 - The tank is completely made of SUS304, 316 or red copper as requirement.

4 - 100% TIG welding with pure argon gas shield.

5 - Interior Finish: 0.4~0.6μm/Mirror Polishing/pickling and passivating 6 - The fermenter is cylinder conical tank type with cooling jackets 7 - The tank dimension can be adjustable according to the room space.

1000l Brewery fermenter.

jpg Details of 1000L/10HL Brewery Fermentor Beer Fermenting Vessel Unitanks Total capacity: with 25% headspace Dome top and cone bottom, bottom cone, 60 degree Interior Shell: SUS304, T 3.0mm; Exterior Shell: SUS304, T 2.0mm 2B Insulation: PU, T 80-100mm 100% TIG welding with pure argon gas shield Interior Finish: to 0.4~0.6μm/ Mirror polishing/pickling and passivating Cooling Jacket: On both cone and cylinder parts, can be separate cooling zones Top mounted manhole/Side manhole Relief/Vacuum valve/PVRV Valve Dry hopping port Thermometer Thermowell with high accuracy temperature sensor: PT100 Beer Sample valve Bung apparatus/Release Valve with pressure gauge Test Pressure: 0.3Mpa, Working pressure: 0.15-0.2Mpa.

Rotating racking arm on cone with butterfly valve Drainage with butterfly valve CIP arm with 360° spraying ball Tank complete with fittings, valves, and all parts.

Optional: Level Tube CO2 Carbonation Stone Copper Shell Pressurized Dry Hop feeder Other requirements Dimension design Perlick style sample valve Additional blow off pipework.

Regular Specification Table for 1000L Brewery Fermentation Tank 1 Dimension: ø1200*2650mm Adjustable

2 Total Volume: 25% head space NO Name Specifications

1 Head SUS 304 T3mm

2 Inner Wall SUS 304 T3mm

3 Layer SUS 304 T2mm

4 Insulation PU 80-100mm

5 Jacket Dimple Plate SUS 304 No: Size Name Connection

1 580*480mm Side Manhole Welding

2 ø38mm Safety/Vacuum Valve TC

3 ø102mm Dry Hop Port TC

4 ø32mm CIP Ball TC

5 ø16mm Thermometer TC

6 ø32mm Sample Valve TC

7 ø76*32mm Rotation Rack Arm TC

8 ø38mm Drainage Port TC

9 ø32mm CIP Arm TC

10 ø32mm Bung Apparatus TC

11 ø25mm Cooling Inlets and Outlets Threads

12 ø10mm PT-100 Welding

Optional

1 Carbonation Stone

2 Level Tube

3 Others More details, please contact us WhatsApp: 008615064002311 Shandong Tek Machinery Co., Ltd is a professional designer and supplier of high quality complete craft beer brewing equipment, fermentation tank and the turnkey services for breweries and beverage projects in China.
