ATOP Bearing/Watch Accessories DLC Coating Vacuum Coating Machine Main Feature 1 - Adopt multiple sets of twin arc, which can install 2-6 different target materials.

Pure metal or alloy composite nano film layer is achieved.

2 - The work piece rack adopts rotation and revolution structure, large loading capacity and temperature resistance.

The frame can move out of the chamber which is convenient to load heavy molds.

The work piece rack can be customized according to customer requirements and adopts inverter to adjust, and infinitely adjustable speed.

3 The touch screen and PLC.

This machine can realize automatic control, automatic and manual switch.

- - - - Product Name | ATOP Bearing/Watch Accessories DLC Coating Vacuum Coating Machine | Vacuum Chamber Size | Decide according to the substrate size and output | Substrate | Drill bits, milling cutter, core shaft, blades, precision mould, cutting tools, etc.

| Coating Film | Pure metal or alloy composite nano film | Coating Colors | Gold, silver, black etc.

| Structure | Vertical type ; horizontal type ; single door type ; double-door type.

| Features | Adopt multiple sets of twin arc, which can install 2-6 different target materials.

Pure metal or alloy composite nano film layer is achieved.

| Configuration | Plasma source assisted deposition technology, pre-cleaning and the auxiliary deposition to the work piece.

Adopt the high power pulse bias power supply enhance the coating adhesion.

| Weight | 3Tons-5Tons accordingly | - - - - Application Field 1 - Super-hard wear-resistant film, self-lubricating and anti-friction diamond-like coatings.

.

2 - Automotive, non-ferrous material machining and industrial engineering environments.

3 - This equipment is a multi functional coating equipment, which can be installed at the same time two to six different target material, pure metal or alloy plating nano meter film of single layer or multi layer, high- performance and super hard film layer, excellent wear resistance and corrosion resistance and beautification effect, mainly used in drill bits, milling cutter, core shaft, blades, precision mould, cutting tools, etc.

Basic Configuration 1 - The vacuum system: mechanical pump, rotary vane pump, roots pump, molecular pump, cryogenic pump, with cold trap of high vacuum oil diffusion pump large pumping speed extraction system, the backing pump optional oil-free vacuum pump, stainless steel pipes and valves.

2 - The coating system: the 1 set - six sets of high-power magnetic deflection 270 e electron gun and multiple point crucible, assisted deposition system configuration hall ion source and resistance of evaporation source.

3 - Inflating system: automatic gas flowmeter and flow display instrument control.

4 - Control system: color touch screen, PLC, automatic and manual control can be converted at any time.

Real-time display detailed parameters, fully automatic control of the entire production process, automatic storage process parameters.

The main electrical components are famous brands such as schneider.

5 - Safety system: setting up the acoustic optical alarm device of water, electricity and gas anomaly, and implementing the corresponding protection procedure.

6 - Heating and baking system: adopt a stainless steel tube heating body, the substrate temperature can reach 350 degrees, the temperature control meter adopts the Japanese conductive instrument, the temperature control precision is plus or minus 1 degree Celsius.

7 - Film thickness control: quartz crystal film thickness monitoring system, which can control the evaporation rate of the electron gun, accurately control the film thickness, and automatically switch easily and automatically.

8 - Electron gun and the evaporation source: electron gun power source adopts the power frequency voltage rise, digital control circuits, sparking with high-pressure automatic protection, restoration and steady beam function, remote control, can commune with quartz crystal thickness meter, coating process automatic control.

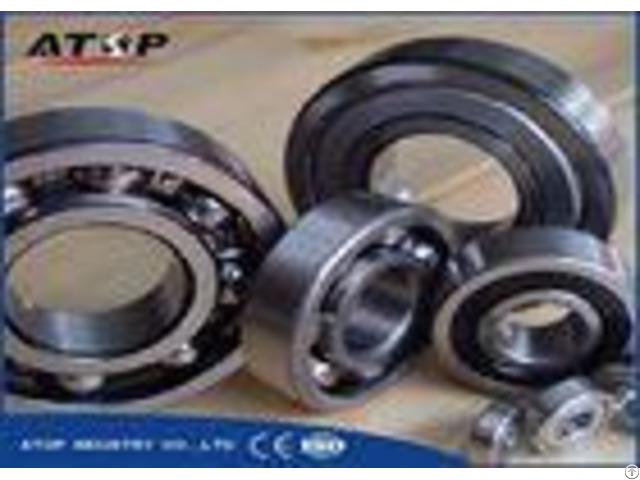

Coating Samples
