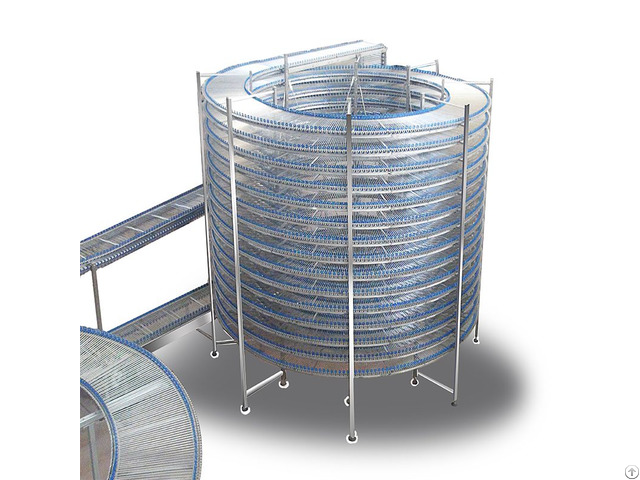

Bread Spiral Cooling Tower - China

Introduction:

This machine is equipped with layer by layer transmission technology which is similar to European technology.

The gear motor drives the gear on every layer through a spindles, and the gear stir the convey belt for movement.

Every gear has intelligent power transmitter which can adjust the convey power.

Features:

1 - Double side nylon card track is stable when it is in operation, it will never get stucked or upturning.

2 - Every belt can adjust the power automatically and keep the power equal because it has intelligent transmission technology.

And its speed is Variable.

3 - We choose high strength nylon card track and low friction food grade pp guide rail for it.

And it has automatic lubrication system so you do not need to add lubricating oil and no need to repair or change any components within many years.

4 - We can design different Input and output directions according to customer;s workshop’s area, such as low input and high output, high input and low output, two input and two output, three input and three output, the last kind is elliptic type.

5 - It saves spaces and guaranteeing high efficiency.

6 - Adapted to bakery products, vegetables, fruit, meat and fish etc.

7 - The convey belt is stainless steel 304 - To grantee it is durable, the frame is ss304 or ss201 square steel tube.

8 - Equip with automatic cleaning device and will do the cleaning automatically.

There are some food scraps and stain during the operation of the tower, our engineers invent automatic cleaning device which can finish cleaning work within 1-2 hours and also dry it automatically.

We have three kinds: single tower, double towers, elliptic tower.

9 - It has variable-frequence, gear motor and Germany Schnelder Electric components.

10 - Belt convey can be bends, slopes or spirals.

It is customized for the following elements:

1 - Material, length and width of the conveyor belt.

2 - The height, diameter and layers quantity of the tower.

3 - In feed and out feed direction.

4 - Shape of the tower (round, elliptic).

5 - Material of the frame.

6 - The brand of the reduction motor, bearing, and the Inverter frequency device and screen.

Working Principle:

The Main Spindle drives per gear in each layer, and gears drives per mesh belt in each layer, so that the power of gear motor to be transmitted.

Each gear has smart power transmission device to adjust the transmission power automatically.

Characteristics of Spiral Cooling/Freezing Tower(transmit layer by layer):

1 - Nylon card rail in both sides are stable, without machine jams or upturning fault.

2 - Due to its intelligent transmission technology, the mesh belt in each layer can adjust its tension automatically, keep the transmission force in each layer equal.

3 - Adopts high strength Nylon card rail and low friction PP guide rail, resulting in lubricant in rotating unnecessary, scraps caused by friction not to drop or pollute food.

4 - Food input and output directions to be customized according to customer's workshop layout, such as Input in Lower entrance, well come out from higher exit, Input in Higher entrance, well Output from Lower exit, Twin Inputs+Twin Outputs, Three Inputs+Three Outputs, Round Circle or Ellipse Spiral Towers.

Proofer

It can be used as spiral proofer, assembly with production line, which improves the production efficiency greatly, users can monitor all proof process via computer control system.

Optional Device: Steam System and Heating System.

The Spiral Cooling/Freezing Tower is suitable for bulk and packaged foods.

It runs as usual at a temperature of 40 ºC below.

Deep freezer

* Deep-Freezing Spiral Tower designed according to usage of foods.

* Cooling/Freezing Settlement customize for bread, pizza, dumplings, wonton, fresh vegetable, fish or other meat.

Cooling

Suitable for cooling all kinds of baking foods and fried foods.

there are two types: Natrual cooling & Controlled Freezing.
