Cold Hot Jet Water Meter Removable Anti Fog Magnetic Drive Small Pressure Loss - China

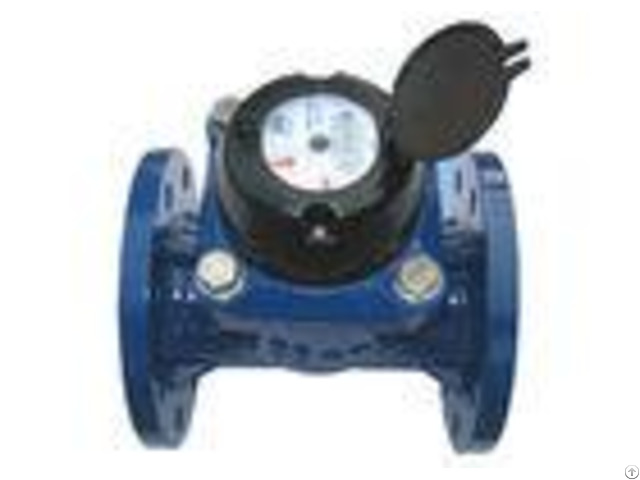

Woltman displacement water meter with dry dial for hot water flow rate and totalizer DN200 CI in irrigation hydrometer The dry dial water meters use the multi-jet principle, also single jet principle available for smaller port size.

This vane wheel water meter is known for its wide range, simple operation, and accuracy in cold water or hot water totalization and flow rate metering.

The impeller is centered in a ring of jets, with inlet jets on one level and outlet jets on another.

A gear train drives the register totalizer dials.

For pulse output, one of the dials is replaced by a gear, which turns a magnet that is detected by an encapsulated sensor threaded into the outside of the lens.

Pulse rate is determined by the gear and the dial on which the gear is placed.

Changing the pulse rate requires no special tools and can be done in the field.

Feature: # Removable element structure, easy installation and maintenance, register for universal use within this range detachable without Removing the meter from the pipeline; # Dry-dial, Magnetic drive sensitive action, small pressure loss; # Vacuum sealed register ensures the dial keep free from fog and Keep the reading clear in a long term service; Selected high quality materials for steady & reliable characteristic; # Technical data conform to international standard ISO 4064 - Note: # Measuring accuracy conform to ISO 4064 class B standard.

# Available with different length on request.

Available in hot water meter on request.

Working condition: # Water temperature: 0.140( 0.190 for hot water meter) # Water pressure: 1.0Mpa Maximum Permissible Error: (1) in the lower zone from qmin inclusive up to but excluding qt is 5% (2) in the upper zone from qt inclusive up to and including qs is 2% (3) Hot water meter 3% Data sheet - - - - Model | Dia (mm) | Class ISO4064 | Overload flow (Qs) | Permanent flow (Qp) | Transitional flow (Qt) | Min flow Qmin | Min reading | Max reading | m3/h | M3 | IXLC-50 | 50 | A | 30 | 15 | 4.5 | 1.2 | 0.0002 | 999, 999 | B | 3.0 | 0.45 | IXLC-65 | 65 | A | 50 | 25 | 7.5 | 2.0 | 0.0002 | 999, 999 | B | 5.0 | 0.75 | IXLC-80 | 80 | A | 80 | 40 | 12 | 3.2 | 0.0002 | 999, 999 | B | 8.0 | 1.2 | IXLC-100 | 100 | A | 120 | 60 | 18 | 4.8 | 0.0002 | 999, 999 | B | 12 | 1.8 | IXLC-125 | 125 | A | 200 | 100 | 30 | 8 | 0.0002 | 999, 999 | B | 20 | 3 | IXLC-150 | 150 | A | 300 | 150 | 45 | 12 | 0.0002 | 999, 999 | B | 30 | 4.5 | IXLC-200 | 200 | A | 500 | 250 | 75 | 20 | 0.0002 | 999, 999 | B | 50 | 7.5 | IXLC-250 | 250 | A | 800 | 400 | 120 | 32 | 0.0002 | 999, 999 | IXLC-300 | 300 | A | 1200 | 600 | 180 | 48 | 0.0002 | 999, 999 | - - - - Dimension (LXLC) - - - - Model | Dia.

| L | H | Flange (mm) | (mm) | D1 (OD) | D2 (hole) | Bolt(n-M) | IXLC-50 | 50 | 200 | 253 | 165 | 125 | 4-M16 | IXLC-65 | 65 | 200 | 268 | 185 | 145 | 4-M16 | IXLC-80 | 80 | 225 | 284 | 200 | 160 | 8-M16 | IXLC-100 | 100 | 250 | 295 | 220 | 180 | 8-M16 | IXLC-125 | 125 | 250 | 310 | 250 | 210 | 8-M16 | IXLC-150 | 150 | 300 | 339 | 285 | 240 | 8-M20 | IXLC-200 | 200 | 350 | 382 | 340 | 295 | 8-M20(1.0Mpa) 12-M20(1.6Mpa) | IXLC-250 | 250 | 400 | 433 | 395 | 350 | 12-M20(1.0Mpa) | 450 | 438 | 405 | 355 | 12-M24(1.6Mpa) | IXLC-300 | 300 | 450 | 483 | 445 | 400 | 12-M20(1.0Mpa) | 500 | 488 | 460 | 410 | 12-M24(1.6Mpa) | - - - - Competitive Advantage: # Compliance to international standards: ISO4064 / GBT778 / Q/320700JR05-2003 # Strict process control # Advanced calibration equipment # Engineer team Production line Base water meter
