Diamond Like Carbon Dlc Coating Machine Energy Saving With Alarm System - China
price: check with company for price

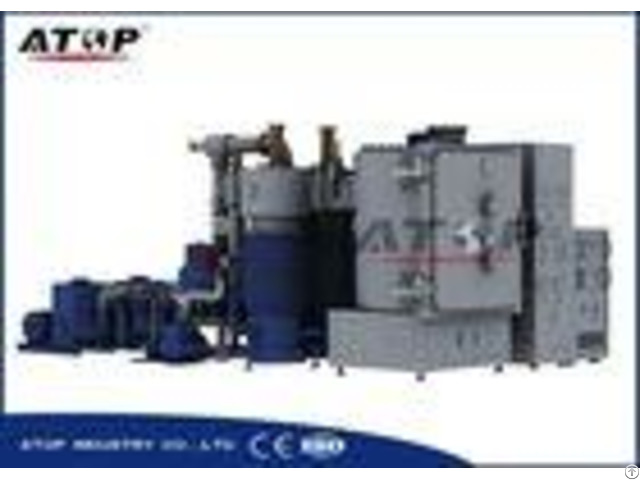

ATOP Diamond Like Carbon Coating Equipment/ DLC Coating Machine Configuration The machine is consist of vacuum chamber, vacuum pumping system, bias power supply, coating system, gas system, control system, alarm system and heating system .
Main Feature 1 - Plasma source assisted deposition technology, pre-cleaning and the auxiliary deposition to the work piece.
2 - Adopt the high power pulse bias power supply enhance the coating adhesion.
3 - Adopt multiple sets of twin arc, which can install 2-6 different target materials.
Pure metal or alloy composite nano film layer is achieved.
4 - The work piece rack adopts rotation and revolution structure, large loading capacity and temperature resistance.
The frame can move out of the chamber which is convenient to load heavy molds.
The work piece rack can be customized according to customer requirements and adopts inverter to adjust, and infinitely adjustable speed.
5 - The touch screen and PLC.
This machine can realize automatic control, automatic and manual switch.
- - - - Product Name | ATOP Diamond Like Carbon Coating Equipment/ DLC Coating Machine | Vacuum Chamber Size | Decide according to the substrate size and output | Substrate | Drill bits, milling cutter, core shaft, blades, precision mould, cutting tools, etc.
| Coating Film | Pure metal or alloy composite nano film | Coating Colors | Gold, silver, black etc.
| Structure | Vertical type ; horizontal type ; single door type ; double-door type.
| Features | Adopt multiple sets of twin arc, which can install 2-6 different target materials.
Pure metal or alloy composite nano film layer is achieved.
| Configuration | Plasma source assisted deposition technology, pre-cleaning and the auxiliary deposition to the work piece.
Adopt the high power pulse bias power supply enhance the coating adhesion.
| Weight | 3Tons-5Tons accordingly | - - - - Application Field 1 - Super-hard wear-resistant film, self-lubricating and anti-friction diamond-like coatings.
.
2 - Automotive, non-ferrous material machining and industrial engineering environments.
3 - This equipment is a multi functional coating equipment, which can be installed at the same time two to six different target material, pure metal or alloy plating nano meter film of single layer or multi layer, high- performance and super hard film layer, excellent wear resistance and corrosion resistance and beautification effect, mainly used in drill bits, milling cutter, core shaft, blades, precision mould, cutting tools, etc.
Coating Samples
Company Contact:
- Posted By: Atop Industry Company
- Phone: 86-510-82858608
- Address: No. 79, Xiyi Road, Xinwu District, Wuxi, Jiangsu, China , Wuxi , Jiangsu , China
- Email:
Published date: January 15, 2018
- Business Description: Atop Industry Co., Ltd, is specialized in vacuum coating machines.
Our engineering team has more than 20 years of experience in PVD coating industry.
Our factory has obtained ISO quality management system and CE certificate.
