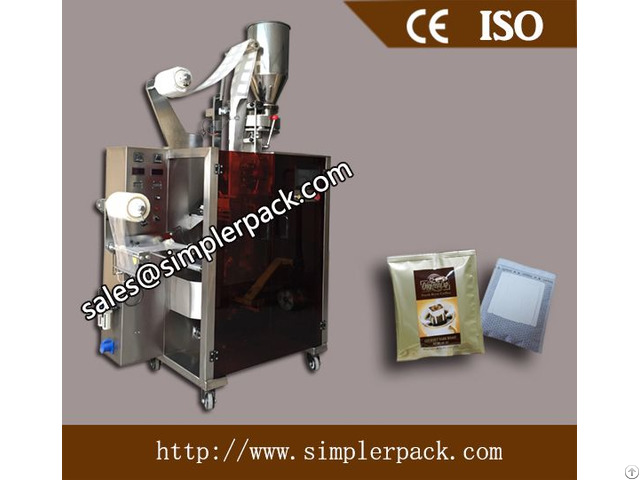

Dirp Coffee Bag Packing Machine By Ultrasonic Sealing - China

Brief Introduction:

1) Automatic multi function packaging forming machine;

2) Coffee powder/Ground coffee;

3) Ultrasonic sealing;

4) Inner drip bag; Filter paper; with outer envelop;

5) High quality with international brand-name parts.

6) All-round process: filing, weighting, bag forming, sealing, cutting and counting etc.

7) Reserved connector for nitrogen flushing.

8) Quality certificated : CE, ISO9001: 2008

9) Manufacturing experience : twelve years

Application:

It is suitable for 5 to 15 gram ground coffee powder in drip coffee bag with outer envelop, such as Blue Mountain coffee, Columbia coffee, Brazil coffee, Kenya coffee, etc.

Features:

1 - Outer bag sealing is controlled by the stepper motor, ensuring accurate and stable bag length positioning.

2 - Adopts PID temperature controller for more accurate temperature adjustment.

3 - Adopts PLC control system and touch screen color monitor device, machine is very easy to operate.

4 - The main machine parts is made of SUS304 stainless steel, so it ensures hygiene products output.

5 - Some cylinders are imported, ensuring the accuracy and stability of the machines' performance.

6 - It can make the inner and outer bag at the same time automatically, which would highly improve the working efficiency.

7 - Adopts automatic conveyor system.

8 - Options: Date code printer.

Standard Technical Data:

Bag type: Ultrasonic sealing

Packing material: Paper/Plastic, Plastic/Aluminum/Plastic, Paper/Aluminum/Plastic, Filter paper

Feeding system: Volumetric cup filler

Package range: 5-15g

Inner bag size: L: 50-75mm, W: 50-90mm

Outer bag size: L: 85-120mm, W: 75-100mm

Inner bag film width (180mm): Bag size: L90mm*W75mm

Outer bag film width(200mm): Bag size: L120mm*W100mm

Power supply: Single phase, 220V, 50HZ, 3.7KW

Packing speed: 30-60bags/min

Machine weight: 400KGS

Machine dimension: 1200*900*1900mm (L*W*H)
