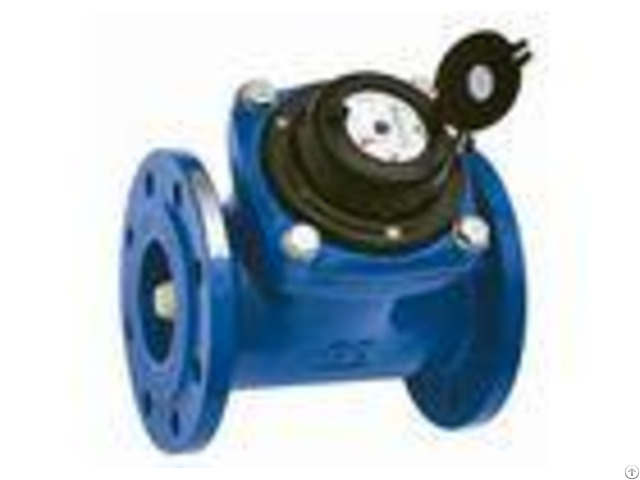

Woltman water meter with positive displacement, for volumetric water flow metering ductile iron, DN100 Flange PN16 The Woltman Helix bulk water meters available in sizes: DN 50 / 2" - DN500 / 20" with various pulse output options.

Suitable for water distribution and industrial applications.

A removable Mechanical counter assembly ensures fast and easy servicing.

The woltmann turbine meters are less accurate than positive displacement and jet type meters at lower flow rates, however the flow path is straight through the meter, allowing for higher flow rates and less pressure loss than displacement style meters.

The measuring assembly does not occupy or severely restrict the flow path resulting in a low pressure drop acrosss the meter.

They are the meter of choice along with mag meters for larger commercial users and as master meters for water distribution system.

Filters or strainers are generally required to be installed up-stream of the meter to protect the measuring element from sand, ice crystal or other debris that could enter the water distribution system.

Its turbine water meters are generally available for 1 " to 20" or higher pipe sizes.

Woltman Helix Turbine meter bodies are commonly made of Cast Iron or ductile iron.

Internal turbine elements can be plastic or non-corrosive metal alloys.

They are accurate in normal working conditions but are greatly affected by the flow profile and fluid conditions, which should be given careful consideration before installation.

Consult us for suitability or alternatives Feature: # The vertical helix design, easily maintenance.

# Magnetic driven, dry dial, clear reading # Full flow measuremeng # Wide measure range, Q3 is up to 250 m3/h # Initial flow Q3 is down 0.03m3/h # Technical data conform to international standard ISO 4064 - Note: # Measuring accuracy conform to ISO 4064 class B standard.

# Available with different length on request.

Available in hot water meter on request.

Working condition: # Water temperature: 0.140( 0.190 for hot water meter) # Water pressure: 1.0Mpa Maximum Permissible Error: (1) in the lower zone from qmin inclusive up to but excluding qt is 5% (2) in the upper zone from qt inclusive up to and including qs is 2% (3) Hot water meter 3% Flow curve Pressure curve Data sheet - - - - Model | Dia (mm) | Class ISO4064 | Overload flow (Qs) | Permanent flow (Qp) | Transitional flow (Qt) | Min flow Qmin | Min reading | Max reading | m3/h | M3 | IXLC-50 | 50 | A | 30 | 15 | 4.5 | 1.2 | 0.0002 | 999, 999 | B | 3.0 | 0.45 | IXLC-65 | 65 | A | 50 | 25 | 7.5 | 2.0 | 0.0002 | 999, 999 | B | 5.0 | 0.75 | IXLC-80 | 80 | A | 80 | 40 | 12 | 3.2 | 0.0002 | 999, 999 | B | 8.0 | 1.2 | IXLC-100 | 100 | A | 120 | 60 | 18 | 4.8 | 0.0002 | 999, 999 | B | 12 | 1.8 | IXLC-125 | 125 | A | 200 | 100 | 30 | 8 | 0.0002 | 999, 999 | B | 20 | 3 | IXLC-150 | 150 | A | 300 | 150 | 45 | 12 | 0.0002 | 999, 999 | B | 30 | 4.5 | IXLC-200 | 200 | A | 500 | 250 | 75 | 20 | 0.0002 | 999, 999 | B | 50 | 7.5 | IXLC-250 | 250 | A | 800 | 400 | 120 | 32 | 0.0002 | 999, 999 | IXLC-300 | 300 | A | 1200 | 600 | 180 | 48 | 0.0002 | 999, 999 | - - - - Dimension (LXLC) - - - - Model | Dia.

| L | H | Flange (mm) | (mm) | D1 (OD) | D2 (hole) | Bolt(n-M) | IXLC-50 | 50 | 200 | 253 | 165 | 125 | 4-M16 | IXLC-65 | 65 | 200 | 268 | 185 | 145 | 4-M16 | IXLC-80 | 80 | 225 | 284 | 200 | 160 | 8-M16 | IXLC-100 | 100 | 250 | 295 | 220 | 180 | 8-M16 | IXLC-125 | 125 | 250 | 310 | 250 | 210 | 8-M16 | IXLC-150 | 150 | 300 | 339 | 285 | 240 | 8-M20 | IXLC-200 | 200 | 350 | 382 | 340 | 295 | 8-M20(1.0Mpa) 12-M20(1.6Mpa) | IXLC-250 | 250 | 400 | 433 | 395 | 350 | 12-M20(1.0Mpa) | 450 | 438 | 405 | 355 | 12-M24(1.6Mpa) | IXLC-300 | 300 | 450 | 483 | 445 | 400 | 12-M20(1.0Mpa) | 500 | 488 | 460 | 410 | 12-M24(1.6Mpa) | - - - - Competitive Advantage: # Compliance to international standards: ISO4064 / GBT778 / Q/320700JR05-2003 # Strict process control # Advanced calibration equipment # Engineer team Production line
