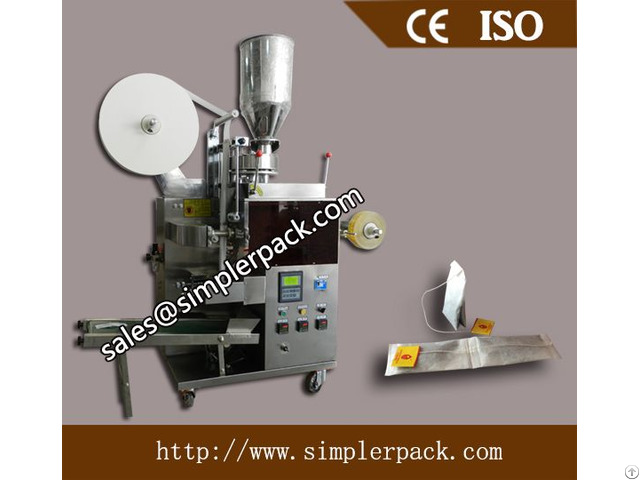

Double Chamber Tea Bag Packing Machine - China

Brief Introduction:

1) Automatic multi function packaging forming machine;

2)Double chamber tea bag with thread and tag;

3)Suitable for all kinds of loose tea leaf and other ground drinking granules;

4)Cost effective;

5)All-round process: filing, weighting, bag forming, sealing, cutting and counting etc.

Application:

It is suitable for double chamber tea bag products packing, such as broken tea, coffee, ginseng essence, diet tea, health care tea, medical tea and herbal tea, etc.

Features:

1 - This can automatically complete bag making, filling, measuring, sealing, thread feeding, tag attaching, cutting and counting etc.

It would highly improve the working efficiency and reduce labor expense.

2 - Pins only need to be stapled by hand.

3 - PLC control system and automatic temperature control system are adopted, which can effectively control the sealing temperature within the standard range.

Technical data:

Machine type: Tea Bag Packing Machine Series

Machine model: C13

Machine name: Automatic Double Chamber Tea Bag Packing Machine

Packing material: Filter paper, Thread, Tag

Measuring: Measuring cup filler

Filling range: 3-15ml

Bag size: L: 150mm (80 +70 mm, bi-fold double chamber bag);

W: 40mm.

Similar to "Lipton" tea bags.

Filter paper width: 87mm

Tag size: L: 20mm, W: 25mm

Thread length: 155~200mm

Packing speed: 20~40 bags/min

Power supply: 220V/50HZ/1.6KW

Machine dimension: 900*950*1800mm(L*W*H)

Machine weight: 350KGS

Company Contact:

• Posted By: Xiamen Sengong Packing Equipment Co., Ltd

• Phone: 05925523433

• Address: No.228, Tianfeng Road, North Industrial Zone, Jimei District, Xiamen , Fujian , China

• Email:

• Website: https://www.simplerpack.com

• Business Description: Xiamen Sengong Packing Equipment Co., Ltd is a professional manufacturer of automatic vertical packaging

  machinery with more than ten years experience in machine development, research, design, production and service.

  In

  2004, the first "Horizontal In-feeding Label" inner and outer bag packing machine was produced in our company,

  which opened up a new era of inner and outer bag tea packaging machine in China.

  Our main products include inner and outer bag tea packaging machine, ground coffee packaging machine, powder

  packaging machine, liquid packaging machine and others packaging machine for special materials, etc.

  High quality,

  efficient and stable, safe and environmentally friendly, energy saving, the machines are widely used in tea, medicine,

  food, chemicals, hardware, electronics and other industries.

  The market share of the "Horizontal In-feeding Label" inner and outer bag packing machine ranks the first in the

  domestic market among similar industries.

  With decades of unremitting efforts, we have developed a series of more

  flexible, more stable and more user-friendly packaging machines, which better meet the requirements of different

  customers ind different industries.

  Even more, the machines have been exported to the United States, Canada, Russia,

  Ukraine, Italy, Australia, Malaysia, Saudi Arabia, Turkey, Brazil and so on.

  Besides, we have a perfect after-sales service guarantee system.

  Staffed with experienced technicians, engineers and

  managerial personals, "quality, rapid and efficient" service from our aster-sales service department are provided for all

  customers.
