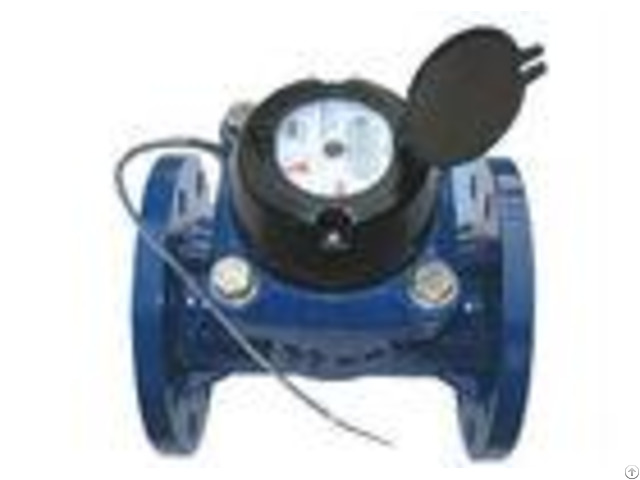

Ductile Iron Pn16 Irrigation Hydrometer With Pulse Emitter Dn200 Flange - China
price: check with company for price
Irrigation water hydrometer for agriculture irrigation, with pulse emitter, ductile iron PN16 DN200 Flange Description: This TURBINE water meter is with magnetic transmission, super dry type register for Irrigation and Agriculture application with sizes from Dn50 to Dn300 designed to meet the requirements of Directive 2004/22/EC on measuring instruments and of European Standard EN14154 - Features 1 - All the materials in contact with water, consciously selected by the known resistance to corrosion; 2 - Iron body with inside and outside epoxy coating for protecting the corrosion; 3 - The ROTATING indicator register for the most comfortable reading position; 4 - The copper can super dry register with IP68 protection; 5 - he interchangeable, removable measuring mechanism can be easy removed from the body for checking, maintaining and replacing, no needs to dismantle the body form the pipe; 6 - Paddle wheel design resists blockage and damage to meter from solids in water; 7 - Magnetic transmission, Low pressure loss; 8 - Suitable for irrigation, agriculture and waste water application ; PULSE OUTPUT ALWAYS READY, AND PULSE OUTPUT AS OPTION, DETIAL AS: 1 - The Pulse Emitter Device consists of a plastic housing with Reed Switch, and 1, 5 m cable with 2 cores in Red and Black.
2 - Electric Data: Vmax=24AC/DC; Imax=0, 01A 3 - Capacity of the Pulse Emitter: Data sheet - - - - Model | Dia (mm) | Class ISO4064 | Overload flow (Qs) | Permanent flow (Qp) | Transitional flow (Qt) | Min flow Qmin | Min reading | Max reading | m3/h | M3 | LXXG-50 | 50 | A | 30 | 15 | 4.5 | 1.2 | 0.0002 | 999, 999 | B | 3.0 | 0.45 | LXXG-65 | 65 | A | 50 | 25 | 7.5 | 2.0 | 0.0002 | 999, 999 | B | 5.0 | 0.75 | LXXG-80 | 80 | A | 80 | 40 | 12 | 3.2 | 0.0002 | 999, 999 | B | 8.0 | 1.2 | LXXG-100 | 100 | A | 120 | 60 | 18 | 4.8 | 0.0002 | 999, 999 | B | 12 | 1.8 | LXXG-125 | 125 | A | 200 | 100 | 30 | 8 | 0.0002 | 999, 999 | B | 20 | 3 | LXXG-150 | 150 | A | 300 | 150 | 45 | 12 | 0.0002 | 999, 999 | B | 30 | 4.5 | LXXG-200 | 200 | A | 500 | 250 | 75 | 20 | 0.0002 | 999, 999 | B | 50 | 7.5 | LXXG-250 | 250 | A | 800 | 400 | 120 | 32 | 0.0002 | 999, 999 | LXXG-300 | 300 | A | 1200 | 600 | 180 | 48 | 0.0002 | 999, 999 | - - - - Dimension (LXXG) - - - - Model | Dia.
| L | H | Flange (mm) | (mm) | D1 (OD) | D2 (hole) | Bolt(n-M) | LXXG-50 | 50 | 200 | 253 | 165 | 125 | 4-M16 | LXXG-65 | 65 | 200 | 268 | 185 | 145 | 4-M16 | LXXG-80 | 80 | 225 | 284 | 200 | 160 | 8-M16 | LXXG-100 | 100 | 250 | 295 | 220 | 180 | 8-M16 | LXXG-125 | 125 | 250 | 310 | 250 | 210 | 8-M16 | LXXG-150 | 150 | 300 | 339 | 285 | 240 | 8-M20 | LXXG-200 | 200 | 350 | 382 | 340 | 295 | 8-M20(1.0Mpa) 12-M20(1.6Mpa) | LXXG-250 | 250 | 400 | 433 | 395 | 350 | 12-M20(1.0Mpa) | 450 | 438 | 405 | 355 | 12-M24(1.6Mpa) | LXXG-300 | 300 | 450 | 483 | 445 | 400 | 12-M20(1.0Mpa) | 500 | 488 | 460 | 410 | 12-M24(1.6Mpa) | - - - - Competitive Advantage: # Compliance to international standards: ISO4064 / GBT778 / Q/320700JR05-2003 # Strict process control # Advanced calibration equipment # Engineer team Pallet pack
Company Contact:
- Posted By: Shanghai I Fluid Technology Co., Ltd.
- Phone: 86-21-67627650
- Address: Room 811-Building 143, No. 1399 Husong Road, Shanghai, China, Shanghai , Shanghai , China
- Email:
Published date: March 20, 2018
- Business Description: Shanghai I Fluid Technology Co., Ltd, a technique based company.
We focus on the deployment , installation and management system of smart metering and smart grid in all utility sectors, include but not limited to water, heat, gas and electricity.
